Product Details
|

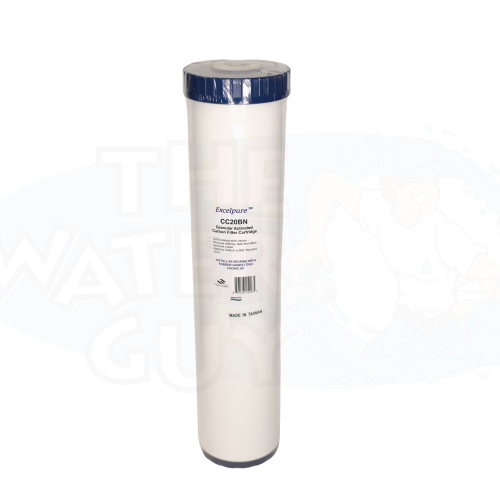

Big Blue 20" Coconut Carbon GAC Filter Excelpure Part # CC20BN
SKU: CC20BN
|
Overview
Excelpure 20" Big Blue Coconut Shell Carbon GAC Filter by Waterite
Reduces chlorine, acid rain,
- Excelpure brand media cartridges by Waterite
- Reduces chlorine, acid rain,
colour , tasteand odors from your water. 5 micron post filter inside reduces carbon fines from entering the water system- Carbon water filters produce healthier, better-tasting drinking water
- Designed for maximum adsorption through extended contact time
Specifications:
- Type: 4 1/2” diameter cartridges for 20” full flow (Big Blue) housings
- Pressure: 125 psi maximum
Tempature range: 4.4°C to 50°C- Capacity: 24,000USG (chlorine reduction)
- Micron rating:
20 micron nominal (media screen) - Colour: white body, navy blue caps
- Boby material: Cartridge body: Food grade polystyrene thermoplastic resin. All materials conform to NSF Standard 42/53
- Internal packing: spun polypropylene
- Media: Carbon - 20/50 mesh activated coconut shell carbon, conforms to AWWA B604-96
- Gasket: BUNA-N
Diamensions : 4 1/2" X 19 7/8" (508 mm x 114 mm)- Initial pressure drop & Flow rate: 5psi @ 5USGPM
- Part/Model #: CC20BN
ADDITIONAL NOTES:
- Carbon fines (harmless fine black or silvery carbon dust) may be present in the cartridge due to handling and should be flushed thoroughly for at least 1 minute before using water for drinking or cooking.
- These cartridges alone do not provide a barrier to microbiological activity and should not be used where water is known to be unsafe for
- drinking, without additional pre-treatment and disinfection.
- Chlorine reduction capacity is estimated with water containing 2.2 ppm FAC at continuous flow with greater than 70% reduction.
