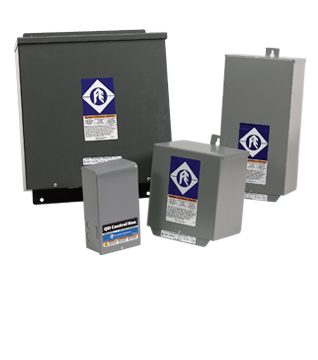

Franklin Control Box 1/3 hp or .33hp at 115V, single phase 60hz .37kw

The most common pump controller in the world!

Franklin single phase controls are designed and optimized for Franklin Electric motors but work on almost any motor matching the basic parameters. The controls are an integral part of a submersible motor power system.

Applications QD  – These control boxes are designed for use with Franklin 3-wire single-phase submersible motors.

• Suitable for Outdoor Mounting Heavy Duty Box-Type Terminals Accept up to AWG #2 Wire
• External Access to Overload Resets
• Multiple-size Knockouts
• User-friendly Connection Diagrams
• Easy Access to Grounding Lugs
• UL 778 Recognized and CSA Certifi ed for 60 Hz Models
• For 1/3 HP Motors
• Size: 5.5" x 3.25" x 9"
• KW: .37 KW
• For 115 Volt / 1 (single) Phase Motors
• 4lb / 1.8kg
