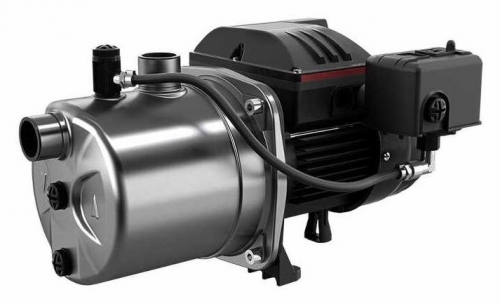

Grundfos/Dab 3/4hp 115/230v Stainless Steel Shallow Well Jet Pump

Grundfos JP pumps are ideal for residential and small commercial water supply systems, light agriculture, industrial water transfer, and home and market gardens.

We have sold Grundfos jet pumps for many years, and have always been impressed with their ability to draw water from greater depths than other similar jet pumps, their quiet operation, and dependability.

Features and benefits

• Environmentally durable stainless steel construction end suction, top discharge arrangement
• Excellent suction capacity.
• Dual voltage (115/230V), selected by simply moving a jumper
• Technopolymer impeller
• Built-in ejector complete with a clean-out port to clear blockages from the nozzle
• Convenient priming plug for ease of priming and air elimination
• Ceramic-carbon bellows mechanical seal ensures trouble-free operation
• High-quality pressure switch.
• Motors are Totally Enclosed and Fan Cooled (TEFC) for quiet operation and superior protection in harsh environments.
• 2 Years Warranty


Model # JP07S-SS (JP4-54ASI) Part # 97855083, 102648140

More information

To understand more about sizing your pump and other specifications such as performance, installation, and warranty, click on the links below.

Spec sheet and pumping curve chart for this line of pumps in PDF, click here.

The full manual can be found by clicking here.

You can also call or write us anytime to help with sizing.

The Grundfos/DAB JP line of self-priming centrifugal jet pumps is designed for shallow wells and is suitable for pumping relatively clean, non-viscous, non-aggressive, non-explosive liquids, free of course solid particles and large fibers.
