The Grundfos MQ3-45 (115V) 1 HP Jet Pump & Pressure Booster Pump.

Features and Benefits:

The Grundfos' MQ pump is compact and extremely easy to install. The pressure switch and tank are already built into the MQ. Furthermore, it is self-priming and water-cooled with a very low noise level. The outlet pipe connection can be angled up to 5° to fit your existing pipe-work. Grundfos' MQ pump is simple and easy to operate. The settings are clearly indicated on the user-friendly control panel with indicator lights for Pump on/off, auto reset, and an alarm indicating dry running or overheating. Grundfos MQ is built for trouble-free operation. Its construction from corrosion-resistant materials means it can be used for clean water. The anti-cycling feature prevents the pump from repeatedly starting and stopping in the event of a dripping tap or a minor leak. If there is no water available, the pump will stop to protect itself and restart automatically when water is available again.

• Whisper quiet motor and pump

• Electrical cord is prewired

• Self-priming

• Stable operation (even in case of air pockets in the water)

• Totally enclosed, fan-cooled motors; efficiency, long life & quiet operation

• Built-in thermal overload for motor protection

• Corrosion-resistant composite components; impeller, ejector and diffuser

• Made of rugged cast iron for durability & strength

• Equipped with clean-out port for easy ejector servicing

Specifications:

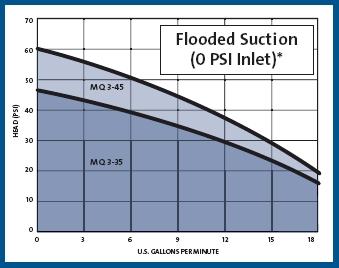

• Flow range: 0 - 20 U.S. GPM
• Head range: 0 - 139 Feet

• System pressure: Up to 109 psi

• Inlet pressure: Max. 45 psi

• Suction lift: Max. 26 ft

• Liquid temperature: 32°F to +95°F

• Ambient temperature: 32°F to +113°F

• 1" IPS Inlet and outlet connections

• Model # MQ3-45 - 115volt – 1hp -
• Part # 96860195

Also available in 230volt, see our other listings

Click here to download the Product Guide in PDF file format
Click here to download the full Installation and Operations Manual
