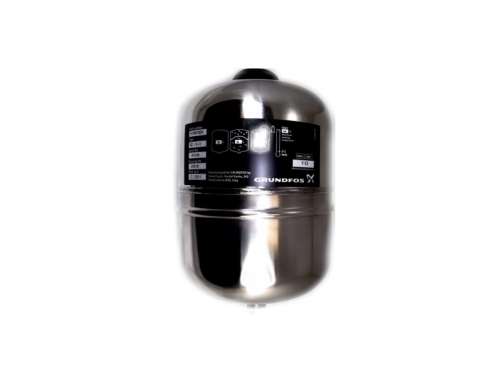

All Stainless Steel Inline/ Vertical Diaphragm Pressure Tank by Grundfos

8 Litre / 2.1 Gallon

Features:

Are ideally suited for constant pressure systems, irrigation applications, booster systems, shallow jet pumps, expansion tanks, hammering tanks and centrifugal pump configurations...

Constructed with a single butyl diaphragm and polypropylene liner assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high-grade butyl rubber compound.

Grundfos all stainless steel tanks provide you with the utmost strength and durability, especially in low pH or chemically aggressive water.

Specifications:

• Tank: Stainless Steel
• Water chambers: 100% butyl rubber diaphragm, and virgin polypropylene liner
• Water Connection: 3/4" SS MNPT (Male Normal Pipe Thread)
• Testing: High pressure, seam weld, helium, final precharge check
• Air valve: Stainless Steel valve with o-ring seal
• Model: Hydro 8-V INOX Diaphragm
• Size: 8 Litre / 2.1 Gallon
• Part # 91581001
• Made in Italy

Notes:

If using this in a constant pressure system the maximum recommended flow rate is 10 gpm, if your system can exceed 10gpm we recommend using the next size up tank.
4.8 gallon / 18 litre Part # 91581002
