Product Details
|

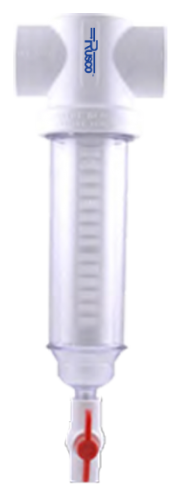

Rusco Spin-Down 1 1/2" Sediment Filter Kit
SKU: 1-1/2-___-F
|
Overview
Rusco Spin-Down® Sediment Filter - 1 1/2" Housing with Flush Valve and your choice of Polyester Mesh Filter Element
Spin-Down sediment filters are used in many different applications, from domestic well water systems, geothermal heating, lawn, garden & greenhouse, all the way to factories, farms, and cooling systems. Rusco's Spin-Down filters have been providing an industry-leading sediment filtration solution since the '70s.
1.5” Spin-Down Filter Specifications:
- Flow capacity: 10-50 GPM *see our note below on flow and pressure below
- Max pressure: 150 PSI
- Dimensions: 15-3/8”L x 5-1/4”W
- Filter head material Schedule 40 PVC
- Port size: 1.5” slip x slip / in and out
- Choose your Filter Mesh Element
- Manual Flush Valve included
- A Small roll of White Teflon Tape included
- Part Number: 1-1/2-_ _-F (pick your screen size when adding to cart)
- Made in the USA
These are the available Polyester Elements when selecting this Kit
- 24 Mesh / 711 Microns
- 30 Mesh / 533 Microns
- 40 Mesh / 381 Microns
- 60 Mesh / 254 Microns
- 100 Mesh / 152 Microns
- 140 Mesh / 104 Microns
- 250 Mesh / 61 Microns
- 500 Mesh / 30 Microns
- 1000 Mesh / 15 Microns
These are the available Stainless Steel Elements when selecting this Kit
- 30 Mesh / 533 Microns
- 60 Mesh / 254 Microns
- 100 Mesh / 152 Microns
- 140 Mesh / 104 Microns
- 200 Mesh / 74 Microns
Optional Slip by Thread and Slip by Slip reducing bushings can be ordered if needed when adding this kit to your cart.
- 1 1/2" Slip x 1 1/2" FNPT (female normal pipe thread)
- 1 1/2" Slip x 1 1/4" FNPT
- 1 1/2" Slip x 1" FNPT
- 1 1/2" Slip x 3/4" FNPT
- 1 1/2" Slip x 1 1/4" Slip (Solvent by Solvent)
- 1 1/2" Slip x 1" Slip
- 1 1/2" Slip x 3/4" Slip
Notes:
*Extra Mesh Screens can be ordered separately for this housing in another listing here.
*Separation works best at higher flow rates, pressure loss is less at lower flow rates, it's always a bit of a trade-off.
*Slip is a reference to a glued or solvent cement type connection. We recommend using a primer and cement or a primer and solvent cement glue all in one type for your pipe and fitting connections.
*Generally speaking, for household use the most appropriate filter is the 3/4” .or 1” Spin-Down or Sediment Trapper filter. Irrigation and other higher flow rate applications (>25 GPM) are best served by our 1.5” or 2” Spin-Down or Sediment Trapper models.
Click here for the manual/install sheet in PDF file format
Click here for a handy chart to help select your mesh screen size
