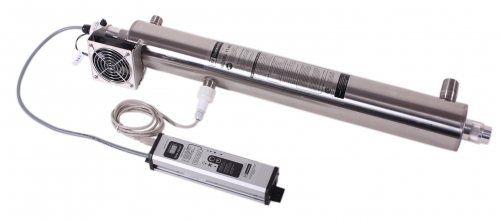

UVDynamics 11gpm NSF/ANSI 55 Class A Certified Stainless-Steel Complete UV System

Free Shipping

Certified protection in your home, business and industry for point of entry applications. The UVDynamics Certified systems are used in point of entry installations in homes, businesses and industry. This Class A system conforms to NSF/ANSI 55 for the disinfection of microbiologically contaminated water that meets all other public health standards. The system is not intended to convert wastewater or raw sewage to drinking water. The system is intended to be installed on visually clear water. If this system is used with untreated surface waters or ground water under the direct influence of surface water, a device found to be in conformance for cyst reduction under the appropriate NSF/ANSI standard shall be installed upstream of the system. This is usually a 1-micron Absolute rated filter unless otherwise specified by your local health department.

Features:

• Flow rate of 11gpm (41.6L/min) delivers UV dose of 40mj/cm2
• Advanced Ultraviolet Water Disinfection
• Passivated and polished 304 stainless steel reactor chamber measuring 3.5” x 32.5”
• 9000hr long life coated UV lamp
• Microprocessor controlled UV power source with audible and visible lamp failure alarms and two-digit display
• True Lamp Current closed loop current control
• Annual lamp change reminder timer
• Lamp life remaining feature
• Built-in dynamic flow regulator
• Cold Spot Fan
• 1” MNPT inlet, ¾” MNPT outlet
• Domed quartz sleeve to simplify servicing
• No tools required for regular servicing
• Easy-service lamp connector
• Low cost replacement parts
• Comes complete and ready to install
• Optional Solenoid Valve and Remote Interface Kits Available
• EPA Est 089330-CAN-001
• Model number UVD11.40C, UVD011.40C0120LL/S

Made in Canada

* If you are needing a higher flow rate in a certifed system see our other models including 14.5gpm - UVD14.40C, 20.2gpm - UVD20.40C NSF Rated Systems
