Product Details
|

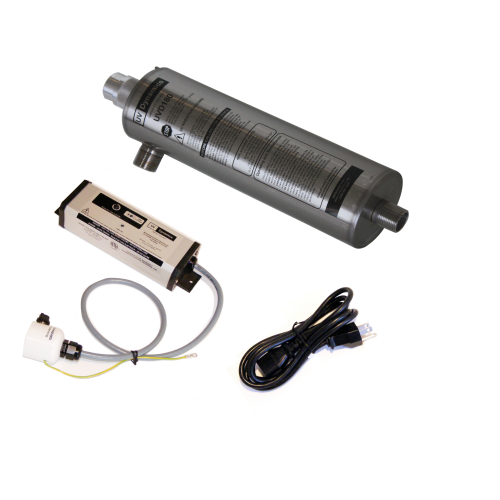

UVDynamics 4.5 to 6gpm Ultra Compact UV System Model # UVD180
SKU: UVD180
|
Overview
UVDynamics 4.5 to 6gpm Stainless Steel UV System - Ultra Compact Design
Free Shipping
Reliable protection in your cabin, small home or business, for point of entry and high flow point of use applications. The UVDynamics model UVD180 is used in point of entry installations in homes, businesses and cottages with space restrictions. The 30mj/cm2 dose of the UVD180 at 6gpm is ideal for general disinfection and can also be set for 4gpm at 40mj/cm2 with a flow restrictor. The compact design and overall footprint of the UVD180 facilitates small spaces including under the sink and also point of use installations. The UVDynamics model UVD180 was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted bio-dosimetry methods by GAP Enviro Microbial Services
Features:
- Advanced Ultraviolet Water Disinfection
- Flow rate of 6gpm (23L/min) delivers UV dose of 30mj/cm2
- Flow rate of 4.5gpm (17L/min) delivers UV dose of 40mj/cm2
- Passivated and polished 304 stainless steel reactor chamber measuring only 4” x 14.5”
- 9000hr long life coated UV lamp
- Microprocessor controlled UV power source with audible and visible lamp failure alarms
- Annual lamp change reminder timer
- Lamp life remaining feature
- ¾” MNPT fittings in and out
- Domed quartz sleeve to simplify servicing
- No tools required for regular servicing
- Easy-service lamp connector
- Low cost replacement parts
- Comes complete and ready to install
- EPA Est 089330-CAN-001
- Model Number UVD180, 400422
Made in Canada
