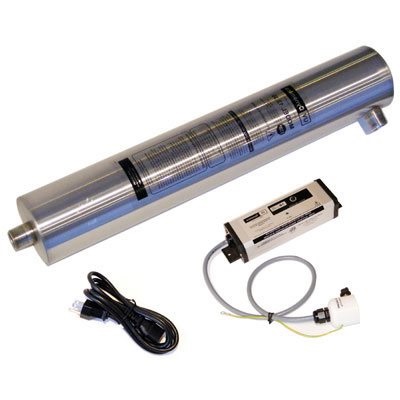

UVDynamics 8 to 10gpm Stainless Steel UV System

Free Shipping

The UVDynamics model UVD320E is applicable to point of entry installation in homes and cottages. TheUVD320E has only basic visual and audio alarm indicators and is ideal for general disinfection applications. The compact mounting footprint of theUVD320E facilitates installation where space is limited. The UVDynamics model UVD320E was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.

Features:

• Flow rate of 10gpm (37L/min) delivers UV dose of 30mj/cm2
• Flow rate of 8gpm (30L/min) delivers UV dose of 40mj/cm2
• Passivated and polished 304 stainless steel reactor measuring 3.5” x 18”
• 9000hr long life coated UV lamp
• Microprocessor controlled UV power source with audible and visible lamp failure alarms
• Annual lamp change reminder timer
• Lamp life remaining feature
• ¾” MNPT fittings
• Domed quartz sleeve to simplify servicing
• No tools required for regular servicing
• Easy-service lamp connector
• EPA Est 089330-CAN-001
• Model Number UVD320E, 400237

Made in Canada

Click Here to download manufacturer spec sheet
