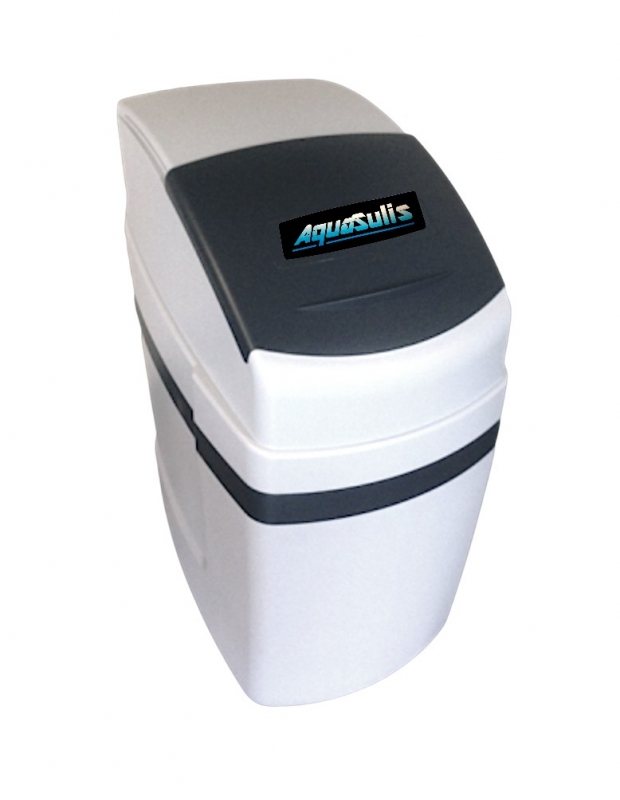

AquaSulis CS Ultra Compact Cabinet Water Softener

AquaSulis Ultra Compact Fully-Featured Water Softener

The perfect fit for super tight spaces, crawlspaces, closets, apartments, modular homes and more. This system is also an amazing water and salt miser while it removes, hardness, iron and manganese from your home. The fully metered electronic valve uses only small amounts of salt and only cleans when needed based on your homes water usage & chemistry.

Features:

• Fits almost anywhere, super compact design
• Installation Space Required, Only 13" in Width, 29" in Height, 24" in Depth!
• Ten-year warranty on the tanks & five years on the control valve including electronics*

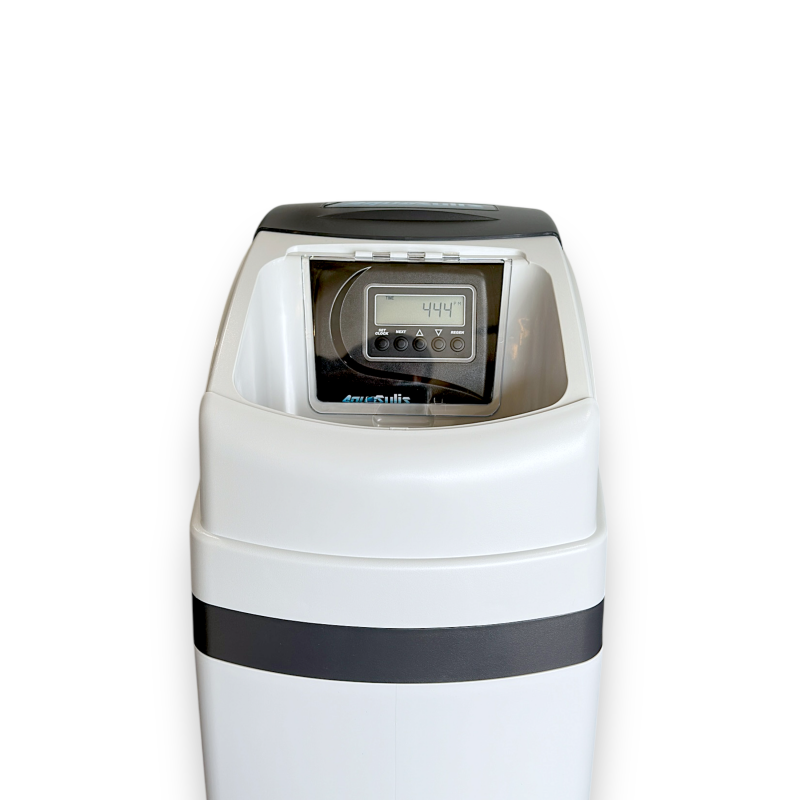

• User-friendly electronics with hands-free LCD panel displays key diagnostics in rotation
• Know at a glance when your softener last regenerated and the volume remaining
• Sliding cover design for an easy salt refill, keeping your system clean and protected
• Quick disconnect bypass valve and plumbing tail pieces, no tools required
• Rugged and Reliable piston, seal and spacer technology

What's in the box?

• Everything except salt!
• Completely Pre-Assembled Softener
• Complete Installation Kit
• Dual By-pass Valve
• Pair of Connection Tail Pieces
• Drain Connection 3/4" MNPT Elbow
• Full installation and operations manual
• Full Warranty

Softening Resin

We use 8% Cation resin simply because its the most efficient media for normal water softening requirements including well water. If you are on a chlorinated, municipal or city water supply select the 10% Cation Resin as it is more chemical resistant than 8%. If you have high iron and or manganese you can choose FM or Fine Mesh resin as it is easier to clean.

Specifications:

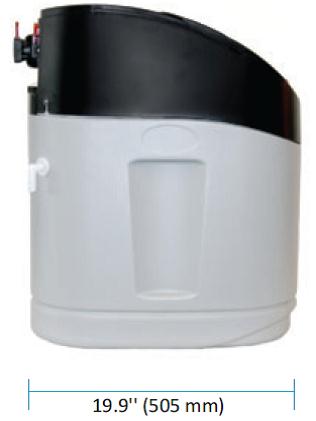

• Height - 28"(71cm) Width - 12"(30.5cm) Depth - 19"(48cm)
• Clack WS1 CS Control Valve
• Capacity in grains: Available in 15K Grains
• Turbine Flow Meter
• Battery Back Up (for short power outages)
• NSF Cation Resin, Your choice of 8%, 10% and FM (Fine Mesh)
• Model Number - ASCS05CAB

Manufactured by The Water Guy in North America

*a commonly used reserve capacity is 20%

*Salt setting and capacities can be set for maximum efficiency or maximum removal

*Elbow fittings will reduce the depth of the installation
*normal wear parts such as orings, and pistons are not covered unless defective.
