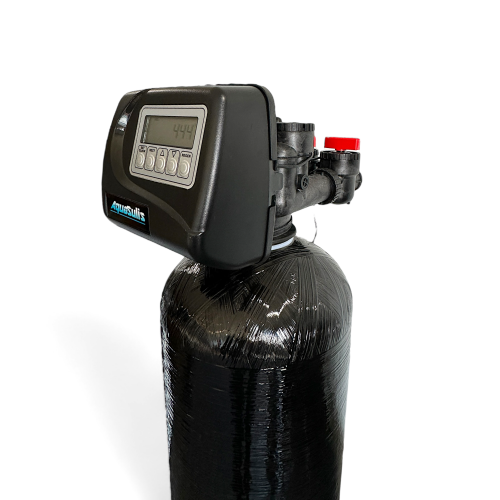

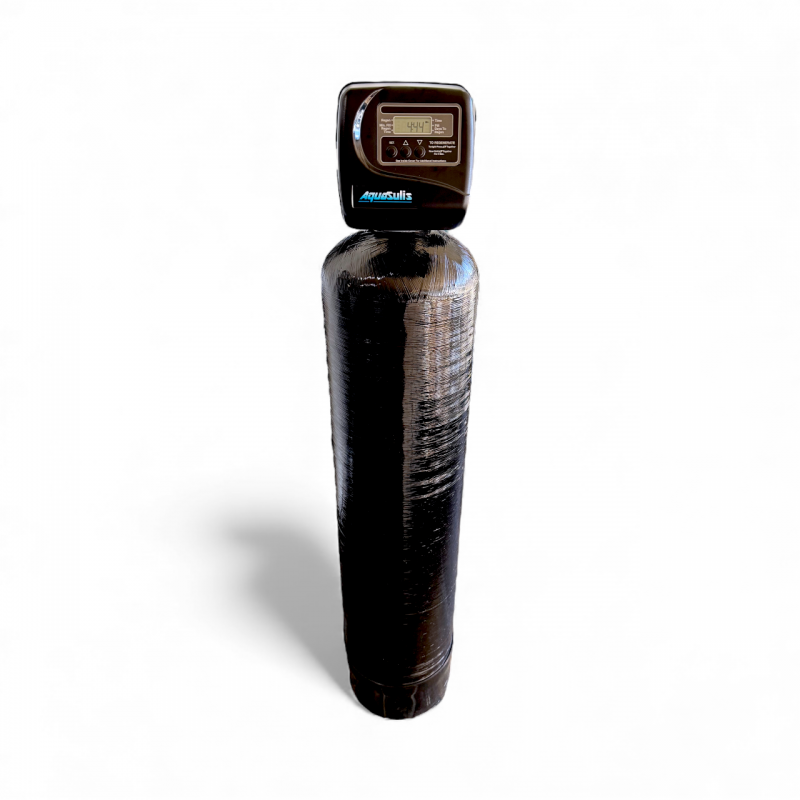

AquaSulis Whole House Chloramine Carbon System

AquaSulis Whole House Centaur Catalytic Carbon Chloramine Water Conditioner

Clack has made some of the biggest advancements in water conditioning in the last 20 years in terms of rugged reliable equipment. These made in North America systems are dependable, efficient and long lasting.

Features and Benefits

• Chloramine removal from your entire water supply
• Also reduces Chlorine, Herbicides & Pesticides
• Centaur Catalytic Carbon by Calgon
• Metered System with Usage History
• Battery Back-Up for Power Outages
• Large Easy to Read Display
• Rugged Proven Design
• High Flow Valve Design
• Downflow Design
• Simple Programming
• Low Maintenance

Resource Information Links

• Full Clack WS1 CS Manual
• Start Up Procedure

What's in the Box?

• One Fully Assembled System*

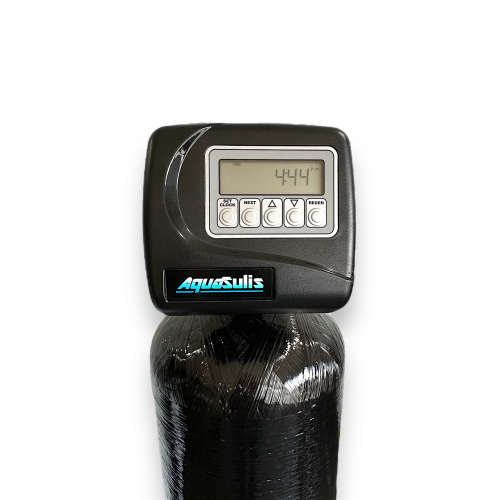

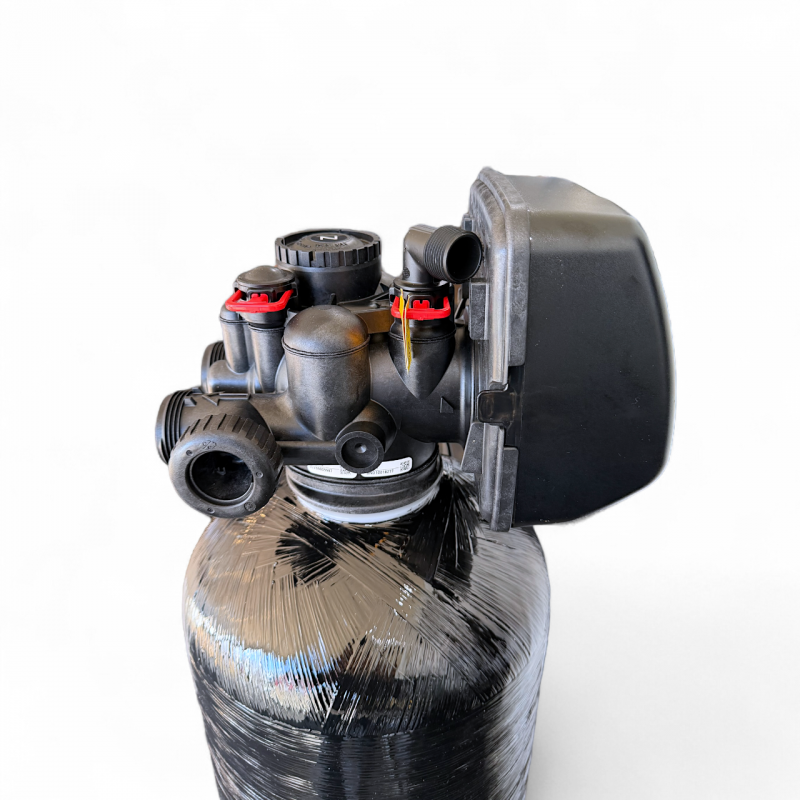

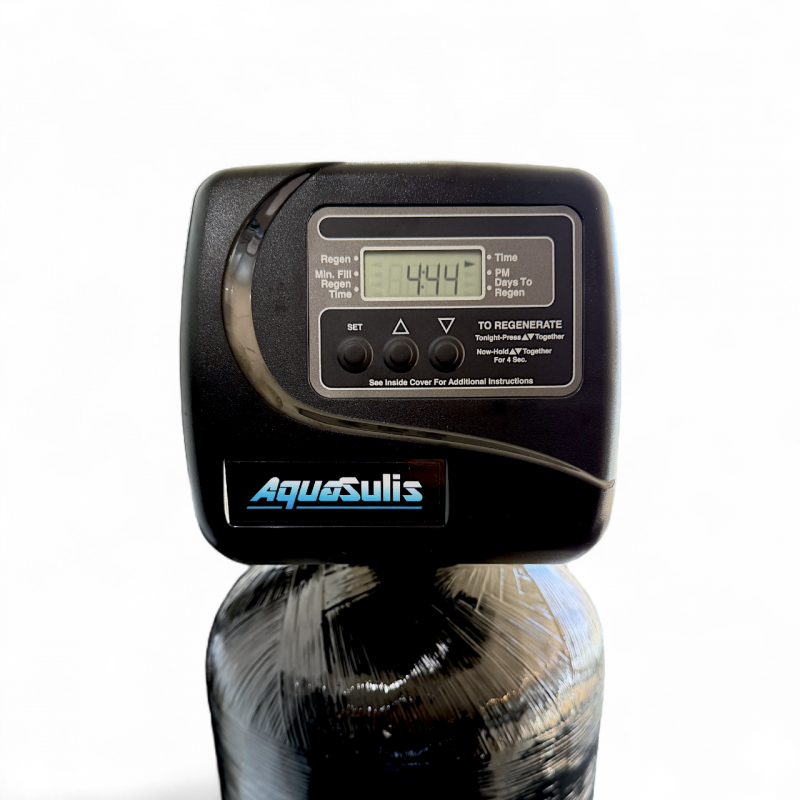

• Clack WS1 TC Series Control Valve
• Centaur Catalytic Carbon

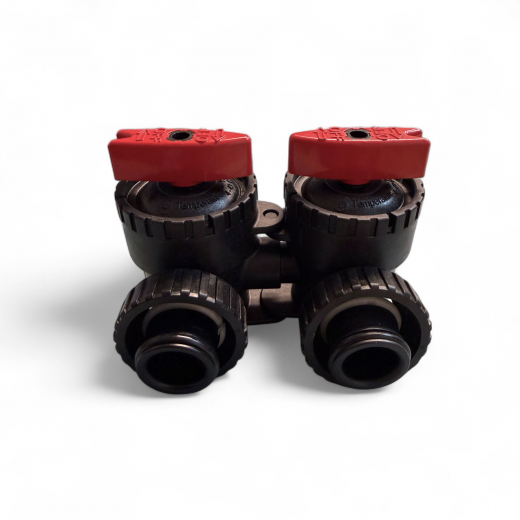

• Matching Dual By-Pass Valve
• Your Choice of many Plumbing Connectors
• Clack or Pentair Structural Poly Glass Mineral Tank - Black
• High Efficiency, Eco Friendly Coconut Carbon
• Riser Rod with Upper and Lower Baskets
• Full Sized Printed Manual

Warranty

• 5 years on the complete control valve
• 10 years on the mineral tank
• Warrantied for manufacturer's defects

Support

• Free Phone & Email Support
• System Sizing
• Installation Help
• Programing Assistance

Available Sizes

• 1.0 cuft Capacity, 9" Diameter by 48" Tall Mineral Tank
• 1.5 cuft Capacity, 10" Diameter by 54" Tall Mineral Tank
• 2.0 cuft Capacity, 12" Diameter by 52" Tall Mineral Tank
• 2.5 cuft Capacity, 13" Diameter by 54" Tall Mineral Tank
• The valve head adds another 7" in height to each tank
• Smaller & larger systems are available, twin parallel systems and commercial ones too, please inquire with your specific needs

Centuar Catalytic Carbon

Experience the health benefits of Chloramine & Chlorine-free water right from your tap with Centuar Catalytic Carbon filtration! Centaur carbon is the highest quality carbon in our industry, the gold standard. This eco-friendly material also protects your health by eliminating harmful chloramine and chlorine byproducts. Enjoy cleaner, safer water for drinking, cooking, and bathing, all while contributing to a greener planet.

Please direct any questions or water reports you have to us so we can help you choose the right size and system for your home & water.

*Shipping

Homes with two zeros in their postal code may require an additional shipping charge or we can sometimes break down the system into a few boxes and ship it via courier instead of ltl on a truck. Call or write to find out more if you live a little out of the way.

The right system & the right size:

There are a few things to consider when selecting your systems size.

Family size (how many people are in your home), home size (number of bathrooms & kitchens), specialty water use appliances like side spraying showers, peak service flow rate, and water chemistry are all important factors in sizing your new whole home carbon system.

What is the intended maximum flow rate in your home? Why is this important... a single cubic foot of catayltic carbon media has a recommended maximum flow rate of 4gpm (gallons per minute). So a 1cuft system is a 4.0gpm system, 1.5cuft = 6.0gpm, 2.0cuft = 8gpm, 2.5cuft = 10gpm, All systems can flow at a slightly higher flow rate for short periods of time.

Is bigger better? In most filtration systems this statement would not be true, however is carbon filtration bigger allows more contact time for your water and the carbon media giving you beter removal, especially at higher flow rates.

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have the endless water supply, well-pumping systems often are the limiting factor and if you're not sure a simple bucket test using a short garden hose from your tank tee/manifold, outside tap or yard hydrant will work great.

Do you already have a water test or know your water content? Send it along to us and we can size the system with you.

Additional Options:

Clack has made some really great additional options for this valve, including, a vertical by-pass adapter which allows you to shorten the installation room needed and position the by-pass valve either pointing up or down.

All systems can flow at a slightly higher flow rate for short periods of time.
