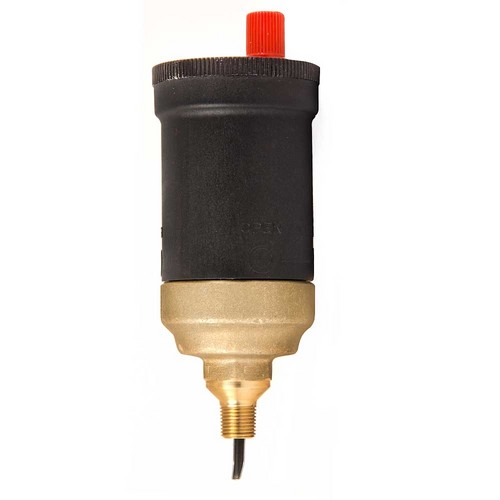

The Honeywell Braukmann EA122A Automatic Air Vent purges air from high pressure mains and equipment in hot or cold closed water systems

Features

• Includes removable float/valve assembly for easy servicing.
• Not for use in steam systems.
• Body, cover and float assembly made of thermoplastics.
• Internal parts made of corrosion-resistant and chemical-resistant materials for use with water systems containing light concentrations of propylene glycol, mineral oils, or petroleum-based oils.
• Oil resistant seal.
• EPDM seat disc and O-ring.

Specifications

• Description: Automatic air vent with built-in shut off valve; EPDM seat disc and O-ring.
• Application: Potable water installations
• Connection Type: NPT Male
• Connection Size (in.): 1/8 in.
• Size (inch): 1/8 in.
• Max Safe Operating Pressure (psi): 90 psi
• Max Safe Operating Pressure (kPa): 620 kPa
• Max Operating Temperature (F): 212 F
• Max Operating Temperature (C): 100 C
• Dimensions (in.): 5 1/4 in. long x 1 7/8 in. diameter
• Dimensions (mm): 133 mm long x 48 mm diameter
• Corrosion Resistant: Internal parts made of corrosion-resistant and chemical-resistant materials for use with hydronic systems that may contain concentrations of propylene or ethylene glycol, mineral oils, or petroleum-based oils.
• Part Number - BVENT, HONEA122A1002
