Clack No Hard Water By-Pass Valve, for the WS1, & WS1.25 NHWBV - FF, Model Number V3070FF

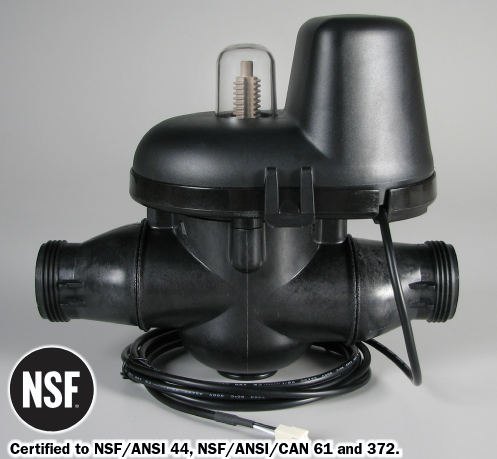

Clack No Hard Water By-Pass Valve

This nhwbv valve can be used with many of the WS1 and WS1.25 electronic control boards so that you can stop untreated water from by-passing the system during a cleaning cycle or other event. This also protects the water supply to the valve during its cycle insuring the cleaning cycle completes uninterrupted. If you are unsure of the compatibility with your board, just send us a picture by uploading one, using our contact/help form.

For the WS1, & WS1.25 NHWBV - FF (Female by Female)

Choose your tail peice adapter set from the drop down menu to match your plumbing/pipes. These fittings are required to complete the installation

Eliminates raw water by-pass during regeneration

• Full 1.25" ports for minimal pressure loss
• Low voltage drive assembly controlled by valve's circuit board
• Proven and reliable Clack DC drive assembly
• Utilizes WS1 and WS1.25 Control Valve Fittings
• Flow from Port A to Port B has a CV factor of 15.5 (3.7 psi drop at 30 gpm)
• Flow from Port B to Port A has a CV factor of 15.9 (3.6 psi drop at 30 gpm)
• Operating Pressures: 20 PSI Minimum 125 PSI Maximum
• Operating Temperatures: 40°F Minimum 110°F Maximum

Clack Part Number/Model Number V3070FF

Maunual & Spec Sheet Here

*this valve is also available with a male & female connection see our related tab or other listing. This will allow you to connect it directly to the main valve or a vertical by-pass adapter.
