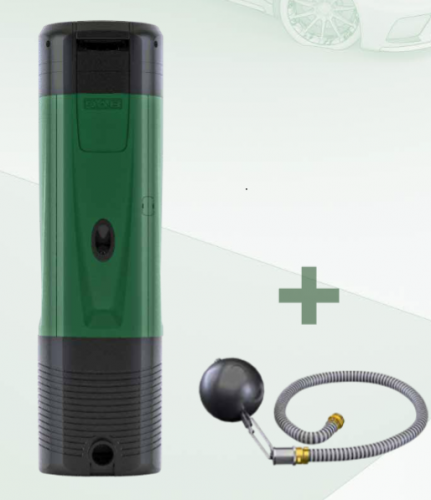

The DTron2X with Floating Suction Kit X which includes 3.2 ft (1 meter) suction hose and float to prevent the suction of impurities from the bottom.from DAB is a 7” submersible multi-impeller pump for clean water designed for use in wells and tanks. It can be used submerged, partially submerged or on the surface (with the appropriate accessory). It is suitable for use in domestic and residential environments for pressurization, rainwater reuse, gardening and irrigation activities. The pump can be installed even horizontally. It is also available in version X with 1” inlet.  The entire pump is classified IP 68, with the DOC68 accessory (supplied separately) it becomes an IP 68 surface pump that can be used under the level of the water. On request a certified version for drinking water is available. The expansion vessel is integrated, no external expansion vessel is required.

Useful Links

The Brochure - The Full Manual

TECHNICAL DATA
Flow rate maximum: 32.1 gpm (7.3 m3/h)
Head up to: 147 ft (45 m)
Maximum immersion depth: 49 ft (15 m)
Type of pumped liquid: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral

Free passage: 0.08” (2 mm)
Minimum suction depth: 4.33” (110 mm)
Minimum level of water: 1.38” (35 mm)
Liquid temperature range: from 32°F to 122°F (+0°C to +50°C)
Minimum and maximum ambient temperature: <32°F to 122°F (+0°C to +50°C)
Maximum immersion depth: 15 m
Set cut-in: 34.8 psi 2.4 bar (+-0.2)
Flanges, thread: Thread 1” 1/4 NPT
Pump maximum diameter: 7.28 “ (185 mm)
Impeller/s material: Technopolymer/ AISI 304 stainless steel
Maximum number of starts: 60/h
Non-stop service: yes
Protection class: IP 68
Motor insulation class: F
Power cable (m) and plug: 49ft (15 m) with plug
Single phase power input: 115v 60Hz
Possible type of installation: Fixed, horizontal or vertical. Submerged
or semi-submerged. It can be installed on the surface, under the water
level, or outside in a vertical position with the DOC68 accessory (supplied
separately).

Special versions on request:
X version with suction kit for suction at a higher level.
Surface version (the DOC68 accessory is required)

Certification:
CSA, CSAus, NSF 61 and 372 (only model for drinking water)

CONSTRUCTION FEATURES OF THE PUMP
Technopolymer pump body to resist corrosion and oxidation. Integrated check valve. Integrated debris filter. Overpressure valve to resist to the formation
of ice in the piping and to protect from water hammer. On the pump body there is a air-vent valve that improves priming during the first installation or
in the event of emptying the tank/well. Technopolymer handle to move the pump. Integrated 0,04 liter expansion vessel sized to prevent the pump from
cycling in the event of small leakages and to compensate in case of water hammer. No maintenance or recharging is required for the integrated vessel.
The coupling between the three impellers in technopolymer, the floating ring and the smoothing disc both in stainless steel allow a limited wear of the
hydraulics. Suction height can be adjusted using the appropriate accessory (included): 1.4” - 1.6” - 2.4’ or 3.2“ (3.5 - 4 - 6 or 8 cm).

CONSTRUCTION FEATURES OF THE MOTOR
Asynchronous submersible water cooling motor. The hydraulic side of the motor shaft is in AISI 303 stainless steel. Double mechanical seal in oil
chamber ensure the pump watertight. Capacitor and integrated anti-overheating motor for thermal protection. Quick coupling/release cable to facilitate
installation inside tanks. Anti tear-off power cable connection.

FEATURES OF THE ELECTRONIC
The electronic operation allows the pump to start and stop autonomously by the system requirements and protects against the dry run. NFC (Near Field
Communication) pocket for the use of a floater sensor (supplied separately) which can be connected without opening the pump and so maintaining a
watertight seal. The ANTI-FLOOD protection intervenes in the event of a malfunction of the shutter. The ANTI-BURPING protection protects the pump from
false starts in the event of gurgling water.

Applications

Pumping water from Rain Water storage tanks

Pumping water from underground cisterns

Pumping water from water storage tanks

Pumping water from RO Water storage tanks

Domestic Water pressurization

Water pressurization for irrigation systems
