Product Details
|
Franklin Control Box 1.5 hp 230V single phase 60hz 1.1kw part # 282 300 8610 or 2823008610
SKU: 2823008610
|
Overview

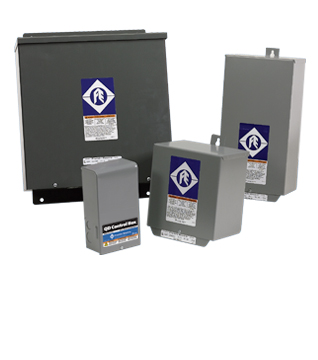

Franklin Electric Standard Model Control Box 1.5 hp 230V single phase 60hz 1.1kw Part # 282 300 8610 or 2823008610
Origonally a replacement for control boxes and motors with a date code after 06H (august 1rst 2006) and newer. This model is being phased out, the replacment is part # 2823008110 .
The most common pump controller in the world! Franklin single phase controls are designed and optimized for Franklin Electric motors but work on almost any motor matching the basic parameters. The controls are an integral part of a submersible motor power system. These control boxes are designed for use with Franklin 3-wire single-phase submersible motors.
Suitable for Outdoor Mounting Heavy Duty Box-Type Terminals Accept up to AWG #2 Wire
- External Access to Overload Resets
- Multiple-size Knockouts
- User-friendly Connection Diagrams
- Easy Access to Grounding Lugs
- UL 778 Recognized and CSA Certified for 60 Hz Models
- For 1.5 HP Motors
- Size: 8.125 x 6.25 x 11.25
- KW: 1.1 KW
- For 230 Volt / 1 (single) Phase Motors (without over load relay, made after August 1rst 2006)
- 7lb / 3.28kg (boxed weight)
- Made in the USA
- Click here to download or view the product manuals and data sheets from Franklin Electric
