Franklin Electric, FPS 3200 Series 4", SS, 10gpm 1 hp 230v, 3-Wire, 1Phase

Call For Price
1-866-489-4004

Call For Price 1-866-489-4004
SKU	10FRD1S4-3W230
Brand	Franklin Electric
Availability	By Phone & E-Mail 1-866-489-4004
	5 Related Products

In Stock:	Ships in 1 - 3 days
Shipping:	Calculated at checkout

Overview
Brand Brand Info
Related Related Products 5

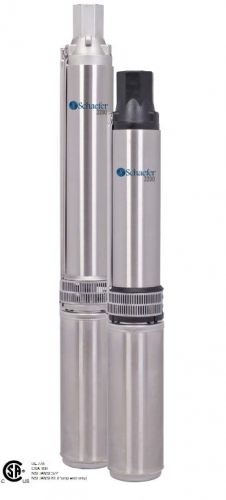

Franklin FPS 3200 Series 4" Stainless Steel Submersible Pumps

10gpm, 1 hp, 230volt, 3-Wire, Single Phase, Stainless Steel, Submersible Pump

The FPS 3200 series submersible pump features a higher output and performance than other pumps in its class. Te reduced pump diameter makes it a true 4" pump, ideal for wells with liners or 4" casings. When you buy from The Water Guy an authorized Franklin Pump Key Dealer you will receive a 5-year full warranty.

Features

Solid Stainless Steel Pump End

Pump diameter is smaller than standard 4" submersible pumps for easier installation in reduced diameters, wells with liners and 4" wells
Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures
Improved hydraulic performance for deeper set depths at all horsepower and flow ratings
Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor
Advanced thermoplastic diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance
Scalloped impellers provide high performance to increase pressure output while reducing system losses from friction
Removable and replaceable spring-loaded check valve

Stainless steel pump intake screen and stainless steel cable guard
Maximum water temperature: 120 °F/49 °C
Powered by a corrosion-resistant Franklin Electric submersible 4" motor with lightening protection built-in

This link has the complete 3200 Series line including pumping charts and pump curves, click here.

Complete Franklin Pump Number (motor & pump end) - 96320702

Model Number - 10FRD1S4-3W230

Made in North America by Franklin Electric

*the schaeffer 3200 series and the FPS 3200 Series are the same pump line, Franklin continues to consolidate their many names.

* This pump requires a control box or drive to operate it, see the related tabs to find out more
