Franklin FPS 3200 Series 4" SS, 5gpm 0.5hp, 230v, 3-Wire, 1Phase, Submersible Well Pump Model # 5FR05S4-3W230

SKU: 5FR05S4-3W230

Your Price:	Call For Price 1-866-489-4004

Quantity:


✔ Available & Ships in 1 - 3 days



Note: This product is not eligible for rewards points earning.

Overview

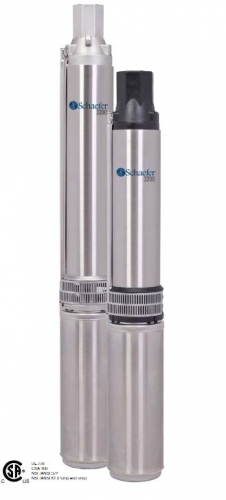

Franklin FPS 3200 Series 4" Stainless Steel Submersible Pumps

5gpm, 1/2 hp, 230 volt, 3-Wire, Single Phase, Stainless Steel, Submersible Pump

The FPS 3200 series submersible pump features a higher output and performance than other pumps in its class. The reduced pump diameter makes it a true 4" pump, ideal for wells with liners or 4" casings. When you buy from The Water Guy an authorized Franklin Pump Key Dealer you will receive a 5-year full warranty.

Features

Solid Stainless Steel Pump End

Pump diameter is smaller than standard 4" submersible pumps for easier installation in reduced diameters, wells with liners and 4" wellsÂƒ
Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures
ÂƒImproved hydraulic performance for deeper set depths at all horsepower and flow ratings
Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor
Advanced thermoplastic diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance
Scalloped impellers provide high performance to increase pressure output while reducing system losses from frictionÂƒ
Removable and replaceable spring-loaded check valveÂƒ

Stainless steel pump intake screen and stainless steel cable guard
ÂƒMaximum water temperature: 120 °F/49 °CÂƒ
Powered by a corrosion-resistant Franklin Electric submersible 4" motor with lightening protection built-in

This link has the complete 3200 Series line including pumping charts and pump curves, click here.

Complete Franklin Pump Number (motor & pump end) - 96310535

Model Number - 5FR05S4-3W230

Made in North America by Franklin Electric

*the schaefer 3200 series and the FPS 3200 Series are the same pump line, Franklin continues to consolidate thier many names.

* This pump requires a control box or drive to operate it, see the related tabs to find out more
