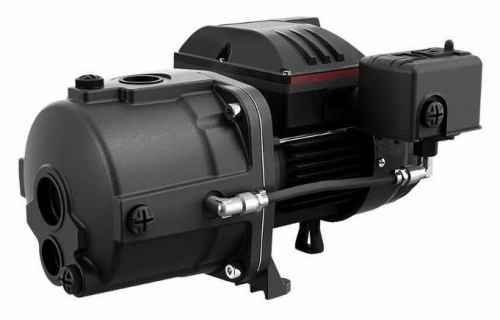

Grundfos & DAB 3/4hp 115/230v Cast Iron Shallow Well Jet Pump

Grundfos/DAB pumps are ideal for residential and small commercial water supply systems, light agriculture, industrial water transfer, and home and market gardens.

We have sold Grundfos jet pumps for many years, and have always been impressed with thier ability to draw water from greater depths than other similar jet pumps, thier quiet operation and dependability. This is the origonal cast iron jet pump that we have sold for many years.

Features and benefits

• Rugged cast iron construction end suction, top discharge arrangement
• Excellent suction capacity.
• Dual voltage (115/230V), selected by simply moving a jumper
• Technopolymer impeller
• Built-in ejector complete with clean-out port to clear blockages from nozzle
• Convenient priming plug for ease of priming and air elimination
• Ceramic-carbon bellows mechanical seal ensures trouble-free operation
• High quality pressure switch.
• Motors are Totally Enclosed and Fan Cooled (TEFC) for quiet operation and superior protection in harsh environments.
• 2 Years Warranty


Model # JP07S-CI (JPA-54ASA) Part # 97855081 (replaces old pump model JPF4-A), DAB Part #102668140

More information

To understand more about sizing your pump and other specifications such as performance, installation, warranty... we have included a link to the manufactures site, check the literature tab to see all of the documents available for this pump. CLICK HERE a new tab or window will open on the Grundfos page. You can also call or write us anytime to help with sizing.

The Grundfos JP line of self-priming centrifugal jet pumps is designed for shallow wells and are suitable for pumping relatively clean, non-viscous, non-aggressive, non-explosive liquids, free of course solid particles and large fibers.
