Grundfos CU302 SQE Constant Pressure Pump Controller with Pressure Sensor Part # 92817764
Call For Price
1-866-489-4004
1-866-489-4004
Call For Price 1-866-489-4004 |
|
|---|---|
| SKU | 92817764 |
| Brand | Grundfos |
| Availability | By Phone & E-Mail
1-866-489-4004 |

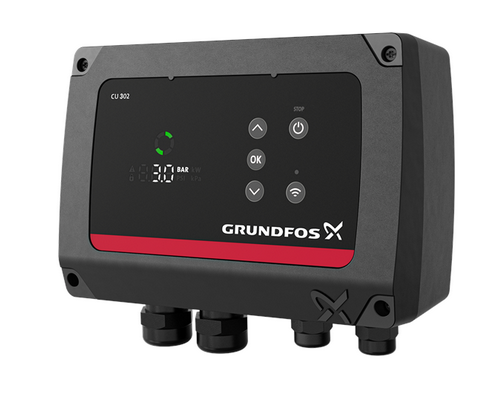

Grundfos CU302 SQE Constant Pressure Pump Controller with Pressure Sensor (Transducer) Part # 96438895
The CU 302 is a control and communication unit developed for SQE well pumps used in constant-pressure applications. The CU 302 communicates with the pump via mainsborne signalling (Power Line Communication),meaning that no extra cables are required between the CU 302 and the pump. External signal input for pressure sensor and connection to an operating relay for indication of pump operation.
The CU 302 control unit provides:
- Full control of the SQE pump
- Reverse compatible with older SQE pumps
- Direct connectivity between the Grundfos Go app and the drive, no dongle needed
- Built in DV/DT filters to eliminate/reduce outside frequency interruptions
- Two-way communication with the pump
- Simple pressure adjustments
- Real time pressure, amps and voltage reporting
- LED Display
- Configuration with R100 remote control
- 60hz
- 90-240 Voltage
Features & Benefits:
CU 302 control can detect:
- No contact to pump
- Overvoltage
- Under voltage
- Speed reduction
- Over temperature
- Overload
- Sensor defective
Other Features:
- Pump running indicator
- Error Code Display
- System pressure setting
- System On and Off
- Button lock indicator
- Dry-running indicator
All additional literature can be found on Grundfos's site here...
real time pressure reporting, real time amps, real time voltage, and error codes being reporting on the front cover.
Product Category Filters Product Lines Filtered by Category Grundfos Product Category Filters
Grundfos produces pump systems that are both innovative and environmentally sustainable. This focus and commitment to the environment addresses the key issues of safeguarding water resources while meeting the owners needs to ensuring a better cost-effective solution.
Renowned for their MQ, Scala2, Jet Pump and Booster Pumps, SQ and SQE Constant pressure systems, and heating circulation pumps, Grundfos keeps us on the edge of today's technology. We also carry the complete line of pressure tanks, control boxes and constant pressure controllers.
Though parts are rarley needed we are quick to find any valid Grundfos part that you may need. As a certified Grundfos Dealer we strive to offer the best solutions to suit your needs.
The Water Guy, has grown a lot from its simple beginnings in 1989 to a full service company that includes its own warehouse and retail store. We know these products because we have installed them and used them for many years.
We carry many items that are not yet on our website. If you are looking for a particular Grundfos pump, or part that is not found on this page, then please contact us by email or call our office (1-866-489-4004) to speak to an experienced water technician that can assist you.
NOTE: The Grundfos line of products are stock items for The Water Guy.
Get the Grundfos line of pumps and systems shipped from our Canadian warehouse directly to your door. Water Tech's are here to assist you with sizing and configuration of your new system.
