Grundfos Pump Control Box 1hp 230V 1ph Part # 98315253
$15895
$15895 |
|
|---|---|
| SKU | 98315253 |
| Brand | Grundfos |
| Get Rewards | 1513.81 Points ! |
Delivery Info
| In Stock: | Ships in 1 - 3 days |
|---|---|
| Shipping: | Calculated at checkout |

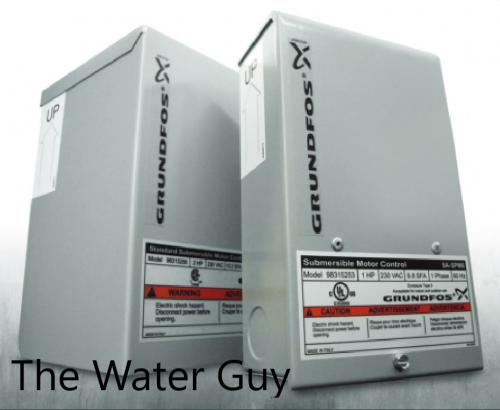

Grundfos Pump Control Box 1.0hp 230V 1ph
Grundfos offers a complete range of submersible control boxes designed specifically for Grundfos MS three-wire, single phase motors rated from 1/2 to 5 Hp. Grundfos stnadard control boxes feature heavy duty epoxy coated steel. The 3/4 Hp box design features a quick removal cover which acts as an electrical disconnect. All functional components are attached to the cover.
Build:
- 1 HP
- 230v, 1ph
- NEMA Type 3R
- Gray Epoxy Coated
- 18 Gauge Steel Construction
- Part Number - 98315253
- Related numbers - SA-SPM MS402 98821633, SA-SPM6
Benefits
- Compact Size
- UL Recognized Capacitor
- UL Recognized Voltage Relay
- PumpSaver® Ready
Standard Features
- Terminals accept up to AWG #4 wire
- External access to overload resets
- Multiple knockout sizes
- User-friendly connection diagrams
- Easy access to grounding lugs
Manufactured by Grundfos
Click Here to download manufacturer's spec sheet
