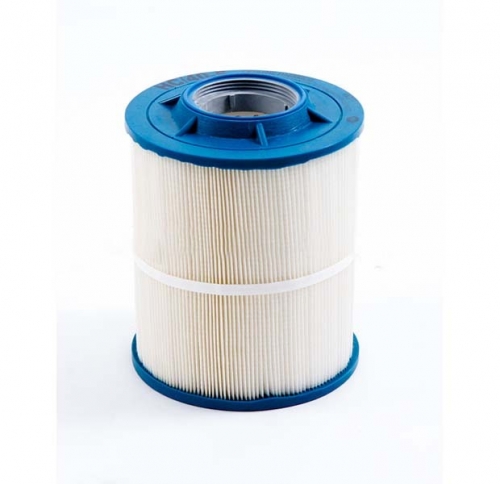

HC/40-150 Harmsco® Hurricane 40 cartridges are manufactured with pleated 100% polyester media for longer life and super high dirt holding capacity

Features:

• Fewer cartridges for fewer change-outs and lower maintenance cost
• Pleated Polyester-Plus filter media provides higher flow rates and lower initial pressure drop
• Pleated surface area provides higher loading capacity for longer filter life and increased particle removal
• End cap, center tube and media are thermally bonded as one integral component for added strength

Benefits:

• High flow capability
• Lower overall operating cost
• Reduced waste disposal
• Longer filter runs and fewer change-outs
• Increased contaminant removal
• Operator friendly

 Specifications:

• Micron Rating : Nominal micron rating 150
• Filter Media : nominal pleated Polyester-Plus™
• Center Tubes : ABS or PVC
• End Caps : Pliable PVC with sealing surface built-in.
• Temperature : 140°F (60°C) temperature limit.*
• Shrink Wrap : Standard for all antimicrobial cartridges.

Temperature limites vary and depend on pressure and time under load.

Sizing Guide:

• Nominal Micron Rating : 150
• Media (sq ft) : 40
• Recommended Flow Rate* (GPM) : 35
• Length (in) : 9-5/8 in
• O.D. (in) : 7-3/4 in
• 1 filter per case

Harmsco recommends sizing filters at 70% of maximum flow rate for the best performance.
