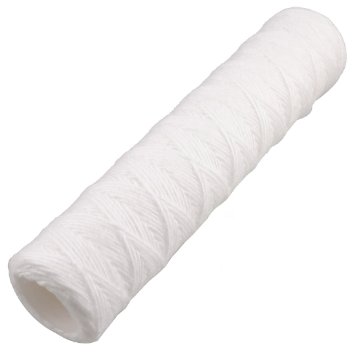

Hypurion 10" Standard String Wound Polypropylene & Stainless Steel Core

*Choose your micron rating when adding the filters to your cart in either 1, 5, 10, 25, or 50 microns

Specifications:

• Size: 9 7/8" L x 2 1/2" D Cartridges for 10” Standard Housings and 10" Slimline Housings.
• Micron Ratings Available: 1, 5, 10, 25 and 50 micron nominal

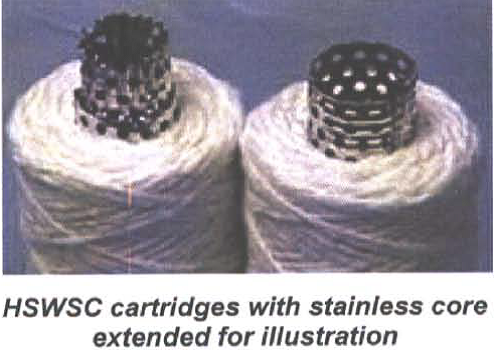

  Precise winding configuration (Waterite SureSpun technology) design to promote effective particle capture and capacity by maximizing filtering surface area.  ‘A’ type end configuration denotes double open end (DOE).  High-density polypropylene core to retain its rigidity.
• Feed Water:   Municipally/City treated water, surface or well water
• Temp range:   90°C (* if higher temperatures are required see our other listings for cotton wound tin core filters)
• Capacity:  Determined by raw water turbidity, Sediment ect...
• Colour:   White
• Material:  Virgin, polypropylene fiber cord and Stainless Steel inner core both chemical and bacterial resistant.  All materials conform to FDA test standards and NSF/ANSI Standards 42/53. No leachables or extractables. Contains no solvents, binders or additives.
• Brand: Hypurion, HSWSC Series
• Manufacturer: Waterite Technologies
• Packaging: Sterile, poly film, outer - corrugated box 50 filters per case

Initial Δ P Model - Rating @ Flow Rate

• HSWSC10010A - 1 micron - 3.1 psi @ 10 GPM
• HSWSC10050A - 5 - 2.2 psi @ 10 GPM
• HSWSC10100A - 10 - <1 psi @ 10 GPM
• HSWSC10250A - 25 - <1 psi @ 10 GPM
• HSWSC10500A - 50 - <1 psi @ 10 GPM
