Product Details
|

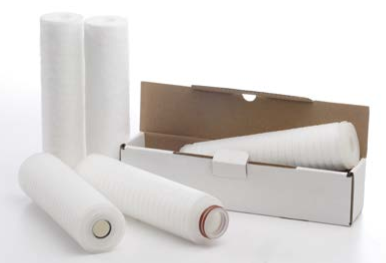

Hypurion HPP 10" Pleated Polypropylene 5 Micron High Purity Filter Cartridge with External Cage
SKU: HPP10050SA
|
Overview
Waterite's Hypurion HPP High Purity Series Water and Beverage Filter Cartridges
Hypurion HPP filters offer a long service life and are free of binders, adhesives or surfactant for compatability with a wide range of fluids. They have exceptional solids holding capacity. Layered sheets of micro media provide advanced particle retention and a long service life.
Waterite style B (GE/Suez style C): 213 top c/w silicone o-ring, closed bottom (GE/Suez style G), designed to fit all standard Pentek style 10” housings and to eliminate any bypassing.
Product Applications- RO Pre-filtration
- DI Pre-filtration
- Cooling Towers
- Med. & Low Viscosity Liquids
- Pharmaceutical
- Food & Beverage
- Laboratory
- Pleated Filter Media: 100% Virgin Polypropylene
- External Cage/Outer Shell: High-strength Polypropylene
- O-ring silicone 213 o-ring & Polypropylene Gaskets
Recommended Replaceable Pressure Drop: 35.6 PSI (2.5 kg/cm2)
18 psi @ 5 GPM
Other Specifications
- Micron Rating: 5 micron nominal rating
- Dimensions: 2 ½” diameter (nominal) X 9 7/8” length (nominal)
- Capacity: Determined by raw water turbidity
- Temperature: 3.0°C to 80.0°C
- Packaging: Plastic shrink heat-sealed and individually boxed
- Part Numbers: HPP10050SA
Click here for the manufacturers Specification Sheet
*do not exceed 55psi forward ΔP or 22psi reverse ΔPCORPORATE MARK: Notes: Polypropylene and silicone have a broad range of chemical resistance. Users should refer to a standard chemical resistance chart for compatibility if using HPP cartridges in chemical applications. All materials used in HPP series cartridges meet US FDA requirements for food contact under the regulations in 21CFR
End Type: Waterite style B (GE style C): 213 top c/w silicone o-ring, closed bottom (GE style G), designed to fit all standard Pentek style 10” Standard housings and to eliminate bypassing of the filter media.
This filter design was based on the popular Hydronix filter series
Other micron ratings in this series, 0.20, 0.45, 0.65, 1, 5 micron nominal rating.
