Manifold Kit Bronze with Wall Bracket and SS Hardware Part # TFP-07M125-MB

1 1/4"- Bronze Manifold Kit with Wall Bracket and SS hardware.

Features:

This is a very nice complete manifold kit for your new or upgraded pressure system, ideal for constant pressure systems, cycle stop valve systems or when you simply have limited space.

This kit has to bushing options so you can accommodate all pressure switches, sensors and transducers commonly found on the market today. Just add the pressure tank of you choice and your complete... (controller manufacturer's recommend the 2 gallon tanks for flow rates under 10gpm and the 5 gallon tanks for higher flow rates... see the related products tab for more information)

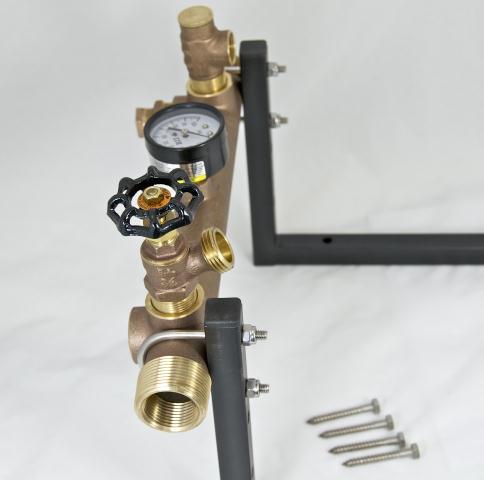

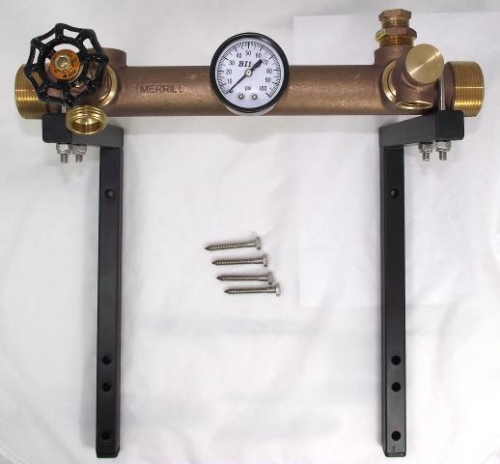

What's in the box?

• Bronze Manifold  - 13.5" / 38cm in length - 1 1/4" MNPT outside and 1" FNPT inside connections
• Brass Sediment Tap / Hose Bib 3/4"
• Brass Pressure Relief Valve 3/4"
• Brass 3/4" x 1/2" Bushing
• Brass 1/2" x 1/4" Bushing
• Steel  2.5" 0-100lb Pressure Gauge

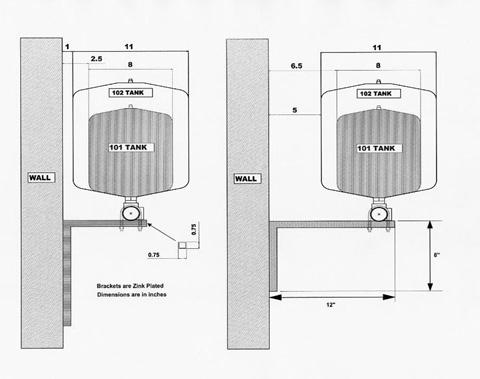

Bracket Kit: Interchangeable, allowing for two different mounting options (See large picture for diagrams)

• 2 - Steel "L" Brackets (with pre drilled holes)
• 4 - SS lag screws
• 2 - SS "U" bolts
• 4 - SS & nylon nuts
• 2 - Plastic bracket end caps.

Note: Brackets are either Zinc Plated or Black Baked Enamel Coated for corrosion resistance.

Other Specifications:

Part # TFP-07M125-MB

Suggested Retail Price $240.00

Manufactured by Boshart Industries

Note: This is not for use with 20 gallon pressure tanks as recommended by Franklin Electric and the Monodrive XT 2 Wire Controller for 2 wire pumps. In this case we would suggest using a conventional tank tee as a manifold.
