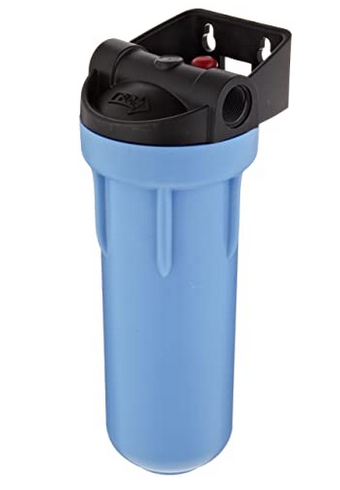

Pentair 10" 3G Standard Housing  3/4" FNPT in/out Black/Blue Integral Bracket Cap with Pressure Relief Valve

Pentair 3G Standard Series Housings feature integral brackets. They accept standard double open end (DOE) and our O-ring sealing cartridges. The O-ring design offers enhanced cartridge sealing for critical cartridge applications. 3G Standard Filter Housings are manufactured from durable polypropylene or clear Styrene-Acrylonitrile (SAN). Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial, and industrial applications. Clear sumps are manufactured from Styrene-Acrylonitrile (SAN). They offer on-site examination of the cartridge and have excellent chemical compatibility.

Features:

• Integral bracket and mounting boss cap versions are available
• Available in 10" and 20"sumps in clear and opaque
• Buttress threads and uniform walls for easier cartridge change and improved strength
• Accepts double O−ring sealing
• Cartridges as well as standard DOE cartridges
• Optional pressure-relief/bleed button and differential pressure gauge
• Leak-proof seal
• Housing – Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap – Reinforced Polypropylene
• Button Assembly – 300 Series stainless steel, EPDM, and polypropylene
• O-Ring – EPDM
• Temperature Rating – 40-125°F  (4.4-51.7°C)
• Maximum Pressure – 125 psi  (8.6 bar)
• Part Number - 150550

Manufacturer by Pentair/ Pentek

Click Here to download the manufacturer spec sheet
