Pentair Undersink Lead Reduction Filtration System Model LR-1500

Pentair Undersink Lead Reduction Filtration System

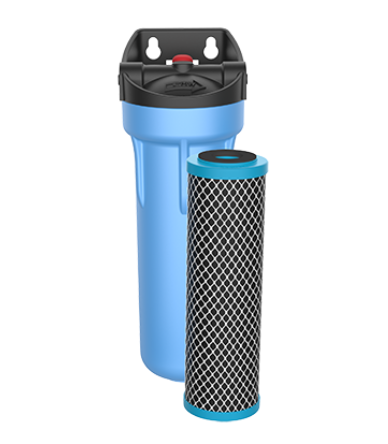

The Pentek/Pentair LR-1500 is a high-performance undersink water filtration system engineered to reduce lead, cysts, and chlorine taste and odor. Certified to NSF/ANSI Standards 42 and 53, it delivers a strong flow rate of 2.5 gallons per minute. It comes equipped with an integrated mounting bracket, a pre-installed 0.5-micron lead reduction filter, a filter wrench, Quick Installation Kit, and a user manual.

Designed for convenient under-sink installation, the LR-1500 provides clean, filtered water to a single faucet without the need for a dedicated filter tap.

Key Features:
  - NSF/ANSI 42 and 53 Certified for lead and cyst reduction.
  - High Flow Rate: Delivers 2.5 gallons per minute of filtered water.
  - Long Filter Life: Each cartridge filters up to 1,500 gallons of water.
  - Comprehensive Kit: Includes filter housing, cartridge, wrench, and installation manual.

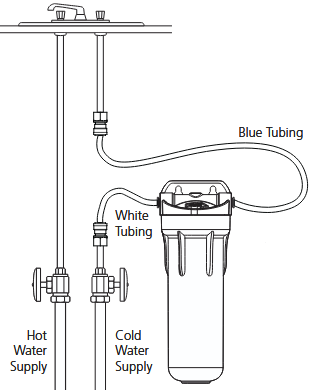

  - Easy Installation: Designed for under-sink installation with direct connection to the cold water side of your existing kitchen faucet, with no separate faucet required.

What's in the Box:
• Filter System with Cartridge
• Installation Hardware Kit:
  - 3/8" (white and blue) tubing
  - Sump Wrench
  - Connectors, Female, 3/8" x 3/8"
  - Mounting Screws
  - Silicone Lubricant Packet

Specifications:
  - Dimensions: 4.88" x 13" x 5.25"
  - Housing Size: 10" Standard
  - Inlet/Outlet Size: 3/8" Quick Connect
  - Housing Material: Polypropylene
  - Micron Rating: 0.5 Micron Nominal
  - Service Life: Approximately 1 year, depending on water quality and usage.
  - Pressure Range: 40–125 psi
  - Temperature Range: 40°F–100°F (4.4°C–37.8°C)
  - Model Number: LR-1500 (Part No. 160406)
  - Filter Cartridge: LR-FB10 (Part No. 655208-43)

Notes:

Though not a requirement, one can connect this system directly to a coffee machine, ice maker, fridge or other appliance.

Click Here for Spec Sheet

Installation and Operational Manual
