Product Details
|
Pentek Big Clear 20" BB Housing 1" NPT in/out, with Pressure Relief Valve Part # 166201
SKU: 166201
|
Overview

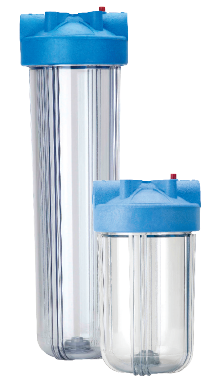

Pentair 20" Big Clear Filter Housings
Pentair Pentek§ Big Clear Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths.
Features:
- 20" heavy-duty housing complete with clear sump and blue cap
- Includes a pressure relief button on the inlet side of the cap
- 1" NPT (normal pipe thread) in and out
threaded connection - Accepts up to 4-1/2" in diameter filter cartridges
- The Clear Sump is constructed of SAN
- Pressure - Max 90psi
- Temperature Rating- 40-100 F (4.4-37.8 C)
- Model # W20-BC
- Part # 166201
What's in the box:
Cap
O-ring
Sump
*Note this housing has its own unique wrench, Part number 144880 click here
*and this
Click Here to download manufacture spec sheet.
