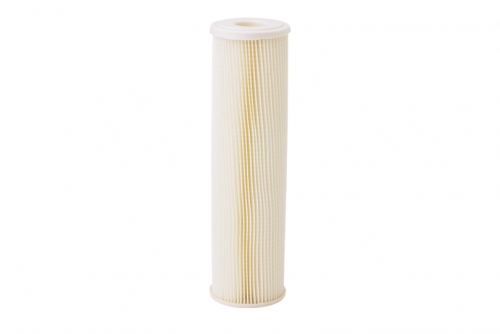

Pentek ECP Series 20 Micron 20" Pleated Cellulose Polyester Filter Cartridge

Pentair (Pentek) ECP Series Cartridges are manufactured from a special formulation of resinClose Viewer-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity while maintaining extremely low pressure drop.

The media is pleated around a polypropylene core for added strength. The pleated endcaps of the standard cartridges are immersed in a thermo-setting vinyl plastisol. The Big Blue cartridges have a molded endcap with gaskets. The pleated ends are sealed to the endcap with a thermoplastic adhesive. The overlap seam is sonically welded to reduce internal bypass, improving filtration efficiency.

ECP Series Cartridge endcaps feature a color-coding system for easy identification of micron ratings: tan (1 micron), white (5 micron), blue (20 micron), and yellow (50 micron).

ECP Series Cartridges contain more media surface area than most competitive cartridges. The Standard 10" ECP cartridge contains 6 ft2 of media while most cartridges contain only 4.5 ft2.

Features

• Replaces Pentek CP and HFCP Series Cartridge
• Special formulated of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridge
• Minimal unloading and media migration
• Filter Media: Cellulose Polyester
• Core: Polypropylene
• Temperature Rating: 40-125° F (4.4-51.7° C)
• Micron Size: 20 Micron
• Color: Blue
• Flow Rate: <1 psi @ 10gpm [<0.1 bar @ 38 Lpm]
• Size: 20" X 2.63" [67 mm X 508mm]
• Part Number - 255487-43 or ECP20-20

Click Here to download manufacture spec sheet

Other available ECP cartridge sizes contain the following amount of media:

• Standard 10" cartridge: 6 ft2
• Standard 20" cartridge: 12 ft2
• BB 10" cartridge: 18 ft2
• BB 20" cartridge: 36 ft2
