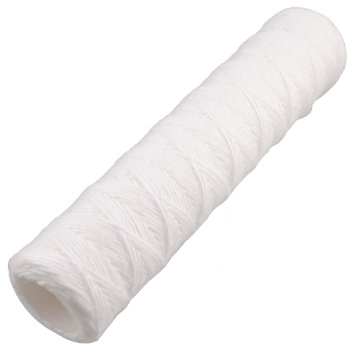

Pentek WP-5 10" Standard 5 Micron String Wound Polypropylene Filter

Pentair/Pentek WP Series Cartridges are manufactured from a durable polypropylene string that is wound around a rigid polypropylene core. They are premium string wound solutions to reduce fine sediment, including sand, silt, rust, and scale particles.

WP Series Cartridges by Pentek are wound in a precise pattern around the core, providing greater surface area. The result is higher dirt loading capacity and greater efficiency than standard wound cartridges.

These string-wound cartridges are capable of withstanding temperatures up to 165°F (73.9°C), and will accommodate flow rates between 7 and 10 GPM with minimal pressure drop. WP Series cartridges are suitable for a wide variety of sediment filtration applications, including municipal and well water as well as many industrial fluids.

Features:

• Wound with a precise pattern to provide a greater surface area
• String-wound design reduces fine sediment from a variety of fluids
• Filter Media – Polypropylene fiber cord
• Core – Polypropylene
• Temperature Rating – 40-165°F (4.4-73.9°C)
• Dimensions: 10" (L) × 2½" (D)
• Micron Rating: 5 micron
• Part # 155071-43, WP-5

Manufactured by Pentair

Click Here to download the manufacturer spec sheet
