Product Details
|

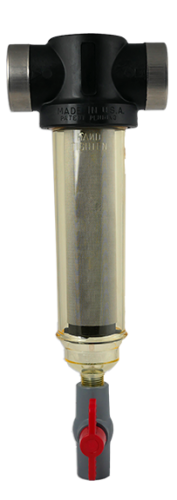

Rusco Spin-Down 1-1/4" Sediment Hot Water Filter Kit
SKU: 1-1/4-__-HT-F
|
Overview
Rusco Hot Water Spin-Down® Sediment Filter - 1 1/4" FNPT Housing with Flush Valve choose your Mesh Filter Element Size
Spin-Down sediment filters are used in many different applications, from domestic, commercial, agricultural, and industrial. Uses include Geothermal systems, Cooling towers, Hot water heater, Boilers, Hydronic radiant floor heating systems, Industrial (Machine coolant and cutting fluids), Spas, Jacuzzis, Pools, Greenhouses, Pressure Washers, Food Processing, Solar Thermal Collectors. Rusco's Spin-Down filters have been providing an industry-leading sediment filtration solution since the '70s.
Rusco Hot Water Filters provide the same efficient and powerful sediment filtration as our regular Spin-Down filters while adding tolerance to high temperatures. Additionally, the Hot Water Filter’s thermoplastic construction allows for increased chemical resistance.
1 1/4” FNPT Hot Water Spin-Down Filter Specifications:
- Flow capacity: 10 - 50 GPM *see our note below on flow and pressure below
- Max pressure: 150 PSI
- Dimensions: 15-3/8”L x 5-1/4”W
- Max Temperature: 200°F (93°C) @ 40 PSI
- Filter head material Schedule 40 PVC
- Port size: 1 1/4" FPT in/out
- Filter Mesh Element - Choose from the drop-down menu
- Manual Flush Valve included
- A small roll of teflon tape included
- Part Number: 1-1/4-_ _-HT-F (pick your screen size when adding to cart)
- Made in the USA
These are the available Stainless Steel Elements when selecting this Kit
- 30 Mesh / 533 Microns
- 60 Mesh / 254 Microns
- 100 Mesh / 152 Microns
- 140 Mesh / 104 Microns
- 200 Mesh / 74 Microns
Notes:
*Extra Mesh Screens can be ordered separately for this housing in another listing here.
*Separation works best at higher flow rates, pressure loss is less at lower flow rates, it's always a bit of a trade-off.
Click here for the manual/install sheet in PDF file format
Click here for a handy chart to help select your mesh screen size
