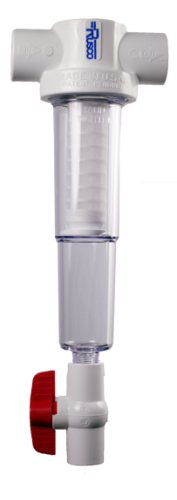

Rusco Trapper Series Sediment Filter Kit- 1 1/2" Housing with Flush Valve and you can now choose your Mesh Filter Element

Trapper Series sediment filters are used in many different applications, from domestic well water systems, geothermal heating, lawn, garden & greenhouse, all the way to factories, farms, and cooling systems. Rusco's Trapper filters have been providing an industry-leading sediment filtration solution since the '70s.


1 1/2” Trapper Series Filter Kit Specifications:

• Flow capacity: 10 - 50 GPM *see our note below on flow and pressure below
• Max pressure: 150 PSI
• Dimensions: 15-3/8”L x 5 1/4"W
• Filter head material Schedule 40 PVC
• Port size: 1.5" slip x slip / in and out
• Choose your Filter Mesh Element
• Manual Flush Valve included
• A Small roll of White Teflon Tape included
• Part Number: 1-1/2XXST-F (pick your screen size when adding to cart)
• Made in the USA

These are the available Polyester Elements when selecting this Kit

• 24 Mesh / 711 Microns
• 30 Mesh / 533 Microns
• 40 Mesh / 381 Microns
• 60 Mesh / 254 Microns
• 100 Mesh / 152 Microns
• 140 Mesh / 104 Microns
• 250 Mesh / 61 Microns
• 500 Mesh / 30 Microns
• 1000 Mesh / 15 Microns

These are the available Stainless Steel Elements when selecting this Kit

• 30 Mesh / 533 Microns
• 60 Mesh / 254 Microns
• 100 Mesh / 152 Microns
• 140 Mesh / 104 Microns
• 200 Mesh / 74 Microns

Optional Slip by Thread and Slip by Slip reducing bushings can be ordered if needed when adding this kit to your cart.

• 1.5" Slip x 1.5" FNPT (female normal pipe thread)
• 1.5" Slip x 1" FNPT
• 1.5 Slip x 3/4" FNPT
• 1.5" Slip x 1" Slip (Solvent by Solvent)
• 1.5" Slip x 3/4" Slip

Notes:

*Extra Mesh Screens can be ordered separately for this housing in another listing in this category.

*Separation works best at higher flow rates, pressure loss is less at lower flow rates, it's always a bit of a trade-off.

*Slip is a reference to a glued or solvent cement type connection. We recommend using a primer and cement or a primer and solvent cement glue all in one type for your pipe and fitting connections.

*Generally speaking, for household use the most appropriate filter is the 3/4” .or 1” Spin-Down or Sediment Trapper filter.  Irrigation and other higher flow rate applications (>25 GPM) are best served by our 1.5” or 2”  Spin-Down or Sediment Trapper models.

Click here for the manual/install sheet in PDF file format

Click here for a handy chart to help select your mesh screen size
