Salt-Free Water Conditioner by Next Filtration Scale Stop

ScaleStop Water Treatment Benefits

Chemical Free Scale Prevention. Cost savings and environmental benefits.

• Virtually Maintenance Free. No salt bags or other chemicals to buy, transport and store.
• No Electricity, no wastewater, completely self-contained.
• Beneficial minerals retained for more healthful drinking water.
• Improves the efficiency of water-using appliances.
• Simple installation – no electrical and drain hookup
• Safe for landscaping and lawn watering. No need to costly bypass plumbing
• Compatible with all on-site and community wastewater treatment systems
• Not subject to water softener restrictions and "bans"

Technology

Based on a proven process known as Template Assisted Crystallization (TAC). In simple terms this causes the scale forming crystals to stick to each other and not to metal surfaces

Environment

Template Assisted Crystallization (TAC), Scale Stop produced the first effective salt or chemical-free scale prevention method. Hardness minerals are converted into harmless crystals.

Maintenance

Scale Stop replacement media typically costs less than the annual salt bill for a system of similar size, and media change out periods can vary from 3 to 5+ years on higher flow rate systems.

Tested

All commercial testing and approval is reinforced by independent third party verifications through an internationally recognized testing protocol for hard scale prevention.

Water Chemistry - best operating parameters

• pH min 6.5 to max 8.5
• Hardness, max. 75 grains (1300 ppm of CaCO₃)
• Ferrous Iron max 0.3 mg/l
• Manganese max 0.05 mg/l
• Copper max 1.3 mg/l

Chlorine max 0.3 ppm, *(note the media will last longer if this is removed prior to the system)

Is this system & method right for you?

There are a few things you need to consider before selecting this method of removal.

Sizing: Family size, home size, service flow rate, and chemistry are all important factors in sizing your new home system.

What is the intended maximum flow rate in your home?

Don't know your flow rate... Fixture counts and the number of people is a practical way when you have AN endless water supply, for those in the country well-pumping systems often are the limiting factor so a bucket test using a stop watch and a hose from your manifold, yard hydrant, bathtub or tank tee will work great.

Water Chemistry Parameters

• pH : 6.5 to 8.5
• Hardness, Max. : 75 Grains (1300 ppm CaCO₃)
• Temperature : 41 to 140 °F (5 to 60 °C)
• Chlorine : <3 ppm
• Iron, Ferrous : 0.3 mg/L
• Manganese : 0.05 mg/L
• Copper : 1.3 mg/L
• Oil & Polyphosphates : Remove Prior To Use
• H₂S : Must Be Removed Prior To Use

* If you have ferric iron, high iron and or high manganese, H2S, Hydrogen Sulphide or exceed any of the operating parameters, contact us with the details and we can find the right variation or supplemental system for you.

Please direct any questions or water reports you have to us so we can help you choose the right size and system for your water.

Information Links

• Features Brochure
• Tech Overview
• Installation and Maintenance Manual

What's in the Box?

• One Fully Assembled System*
• Clack in/out Valve
• Matching By-Pass Valve
• Your Choice of Connection Fittings
• Poly Glass Mineral Tank - Black
• X.X Litres of TAC Media
• Riser Rod with Upper and Lower Baskets
• Printed Manual
• * If you live in an area that doesn't have an adequate courier service, don't worry we can often post a system in two or three easy to assemble pieces.

Warranty

• 1 year on the media
• 5 years on the valve
• 10 years on the mineral tank

Support

• The Water Guy Provides
• Free Phone & Email Support
• System Sizing
• Installation Help

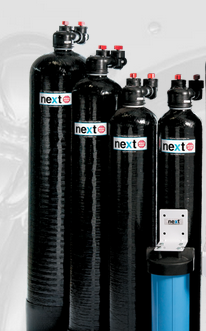

Available System Sizes

Listed Flow Rates are the Maximum Recommended Flow rate for each size.

• Up to 12 gpm, 8" Diameter by 44" Tall Mineral Tank
• Up to 16 gpm, 9" Diameter by 48" Tall Mineral Tank
• Up to 20 gpm, 10" Diameter by 54" Tall Mineral Tank
• Up to 30 gpm, 12" Diameter by 52" Tall Mineral Tank
• Other system sizes are available, please inquire with your specific needs, including commercial systems
• For the overall height add 3" for the control valve.

Operating Conditions

• Service Flow : 4 gpm/liter Of Media (Limited)
