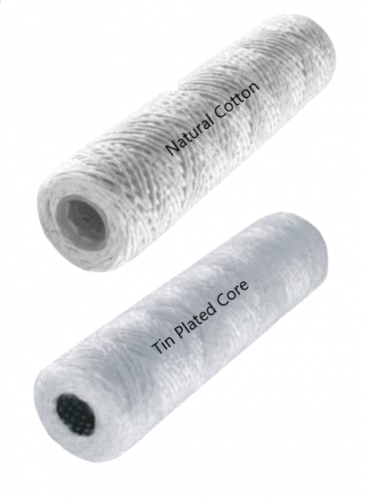

Natural Cotton String Wound Filter Media with a Tin Plated Steel Core

UFI string wound cartridge filters provide true depth filtration, high dirt holding capacity, and extremely low media migration. They are a superior, one-piece cartridge manufactured using a high-speed, continuous wind process, and are available in a wide variety of lengths and porosities. Especially significant is the availability of filters in an almost endless combination of media and core material, to handle virtually any chemical and/or environment or temperature. U-Series string filter cartridges are available with 14-string, seven core and 12 material and end cap options. Outside dimensions of 2 to 6 inches and lengths of 5 to 72 inches are standard. They can be sized for virtually all single- or multi-round filter housings. The precise winding pattern defines micron ratings and results in higher dirt-holding capacity and efficiency.

Features

• Size 10" by 2.5"
• 5 Micron
• For oils, water, paints, organic solvents, alcohols, and petroleum.
• Non-FDA applications.
• For use in temperatures up to 400º F.
• Tin Plated Steel: General purpose metal core for oils, solvents, paints, and other non-FDA applications. For use to 400ºF.
• True Depth filtration
• Manufacture by United Filters International
• Part Number:UU5R10T
• United Filter Industries

Click Here to download manufactures spec sheet
