Product Details
|

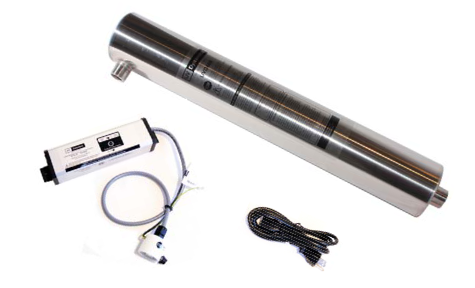

UVDynamics 12 to 16gpm UV System Model # UVD485
SKU: UVD485
|
Overview
UVDynamics 12 to 16gpm Stainless Steel UV System
Free Shipping
This model has the expansion connections for the optional Automatic Solenoid Valve and UV Intensity Monitor
The UVDynamics model UVD485 is applicable to point of entry applications in today’s larger homes and cottages. The model UVD485’s 30mj/cm2 dose at 16gpm is ideal for general disinfection. The compact mounting footprint of the UVDynamics model UVD485 facilitates installation.The UVDynamics model UVD485 was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer. This includes standard feature an isolated low voltage solenoid drive output. Optional solenoid valves simply plug into the unit and require no additional interface cables or transformers to complete the solenoid safety shut off feature.
Features:
- Flow rate of 16gpm (60L/min) delivers UV dose of 30mj/cm2
- Flow rate of 12gpm (45L/min) delivers UV dose of 40mj/cm2
- Passivated and polished 304 stainless steel reactor measuring 3.5” x 24.5”
- 9000hr long life coated UV lamp
- Microprocessor controlled UV power source with audible and visible lamp failure alarms
- True Lamp Current closed loop current control
- Annual lamp change reminder timer
- Lamp life remaining feature
- 1” MNPT fittings
- Domed quartz sleeve to simplify servicing
- No tools required for regular servicing
- Easy-service lamp connector
- Optional solenoid valve
- Optional UV monitor system
- EPA Est 089330-CAN-001
- Model Number - UVD485, 400379
Made in Canada
Click Here to dowload manufacturer spec sheet
