UVDynamics 15 to 20gpm Stainless Steel UV System

Free Shipping

This model has the expansion connections for the optional Automatic Solenoid Valve and UV Intensity Monitor

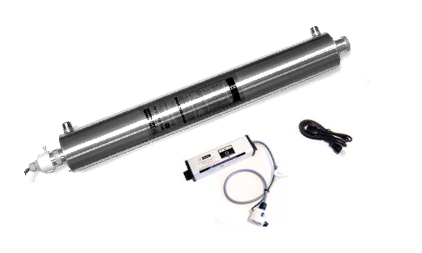

The UVDynamics model UVD600 is applicable for higher flow whole house, point of entry applications in today’s larger homes or smaller commercial / industrial applications. Ultraviolet (UV) water disinfection protects against waterborne micro-organisms and is effective against Giardia and Cryptosporidium without the use of chemicals. The UVDynamics model UVD600 was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services. The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer. This includes standard feature an isolated low voltage solenoid drive output. Optional solenoid valves simply plug into the unit and require no additional interface cables or transformers to complete the solenoid safety shut off feature.

Features:

• Flow rate of 20gpm (75L/min) delivers UV dose of 30mj/cm2
• Flow rate of 15gpm (57L/min) delivers UV dose of 40mj/cm2
• Passivated and polished 304 stainless steel reactor measuring 3.5” x 37”
• 9000hr long life coated UV lamp
• Microprocessor controlled UV power source with audible and visible lamp failure alarms
• True Lamp Current closed loop current control
• Annual lamp change reminder timer
• Lamp life remaining feature
• 1” MNPT fittings
• No tools required for regular servicing
• Easy-service lamp connector
• Optional solenoid valve
• Optional UV monitor system
• EPA Est 089330-CAN-001
• Model Number - UVD600, 400142

Made in Canada

Click Here to dowload manufacturer spec sheet
