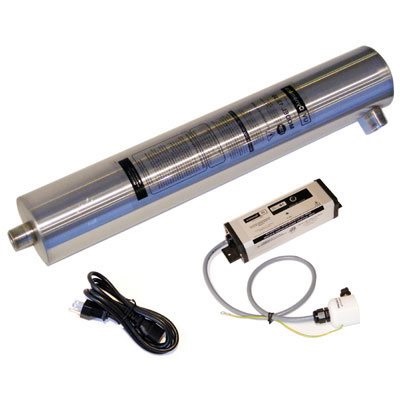

UVDynamics 8 to 10gpm Stainless Steel UV System

Free Shipping

This model has the expansion connections for the optional Automatic Solenoid Valve and UV Intensity Monitor

The UVDynamics model UVD320 is applicable to point of entry applications in today’s larger homes and cottages. The model UVD320’s 30mj/cm2 dose at 10gpm is ideal for general disinfection. The compact mounting footprint of the model UVD320 facilitates simplified installation. Model UVD320 was designed using sophisticated computer modeling software and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.

Features:

• Flow rate of 10gpm (37L/min) delivers UV dose of 30mj/cm2
• Flow rate of 8gpm (30L/min) delivers UV dose of 40mj/cm2
• Passivated and polished 304 stainless steel reactor measuring 3.5” x 18”
• 9000hr long life coated UV lamp
• Microprocessor controlled UV power source with audible and visible lamp failure alarms
• True Lamp Current closed loop current control
• Annual lamp change reminder timer
• Lamp life remaining feature
• ¾” MNPT fittings
• Domed quartz sleeve to simplify servicing
• No tools required for regular servicing
• Easy-service lamp connector
• Optional solenoid valve
• Optional UV monitor system
• Model number - UVD320, 400121
• EPA Est 089330-CAN-001

Made in Canada

Click Here to dowload manufacturer spec sheet
