Viagap Inline Air Gap Device - Choose your Size

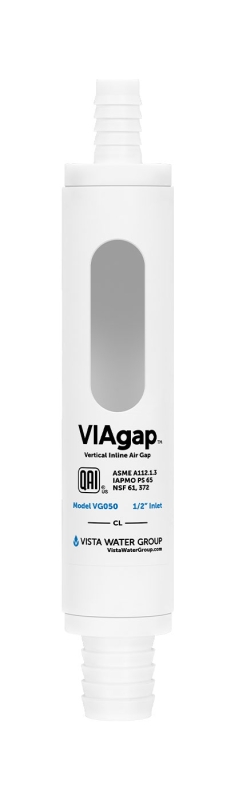

Viagap Vertical Inline Air Gap

For drain lines that require air gaps, the certified VIAgap® vertical inline air gap provides a simple, splash-free solution for various types of appliances and devices including reverse osmosis systems, water softeners, whole-house water filters, condensate lines and more.

Features:

• Durable, non-corrosive Schedule 40 PVC
• Standard-sized inlet and outlet hose barbs
• Additional installation options for standpipes, couplings, and inline-pipe mounts
• Wall-mountable clips included
• Integrated straightening vein virtually eliminates splash
• Integrated weep hole prevents pooling when installed with coupler

Installation:

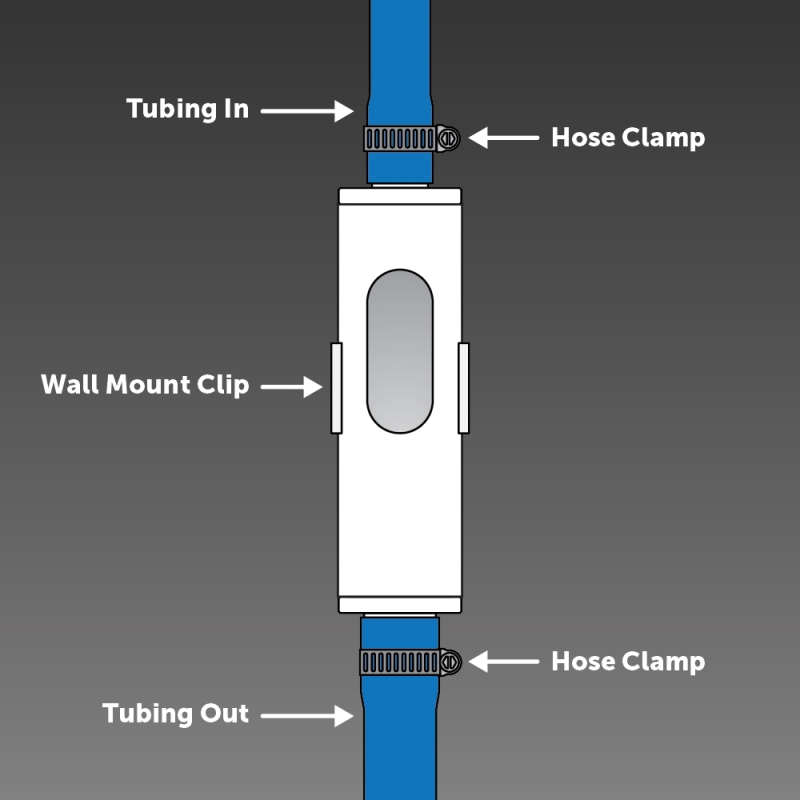

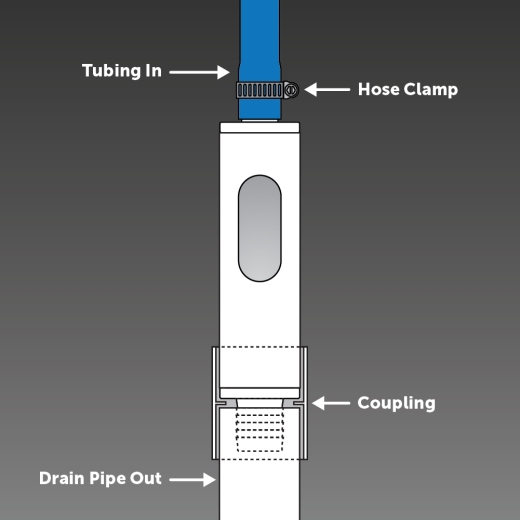

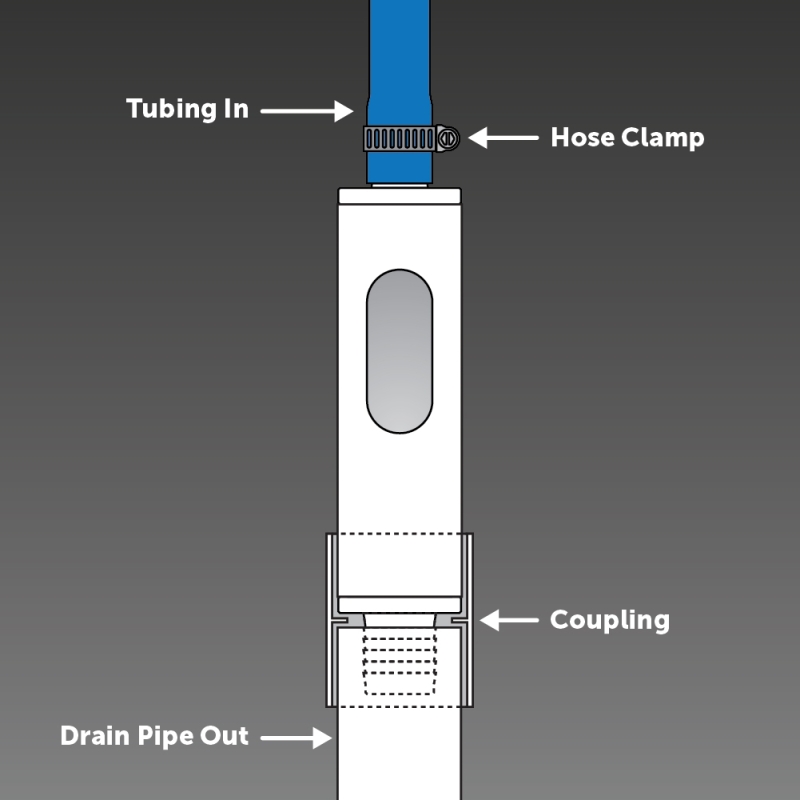

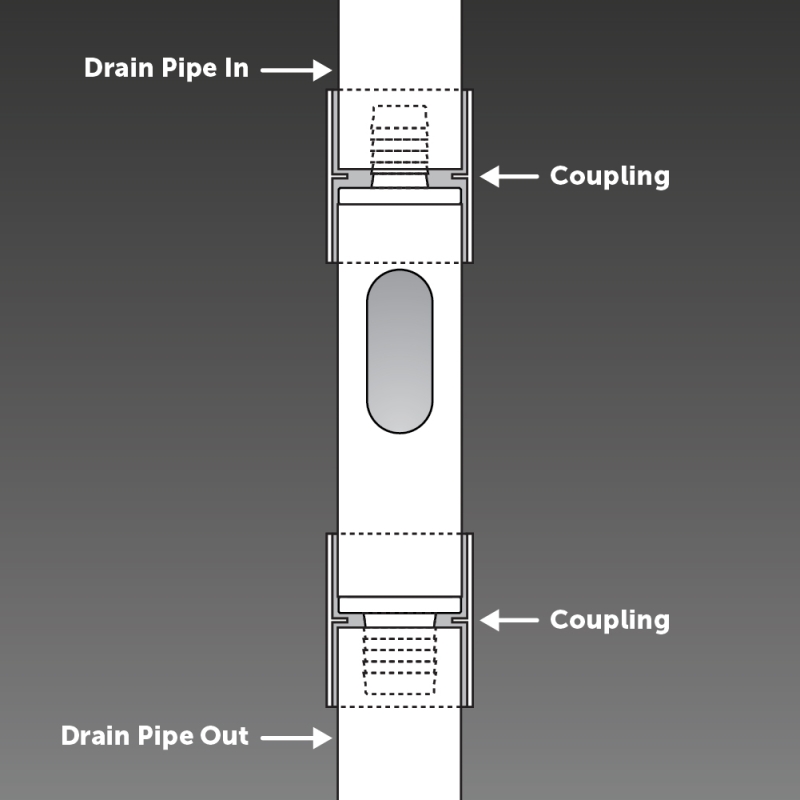

• There are three installation options, shown in the extra images

Available Models:

• VG025 – Inlet: 1/4" Barb | Outlet: 3/8" Barb
• VG038 – Inlet: 3/8" Barb | Outlet: 1/2" Barb
• VG050 – Inlet: 1/2" Barb | Outlet: 3/4" Barb
• VG075 – Inlet: 3/4" Barb | Outlet: 1" Barb

• Note An x/y" barb accepts tubing with an inner diameter of x/y"
• Products are NSF 61, NSF 375, PROP 65, ASME A112.1.3
