Product Details
|
Viqua Sterilight 14gpm to 18gpm Monitored Compact UV System Model # VH410M
SKU: VH410M
|
Overview
Viqua - Sterilight 14gpm to 18gpm Real Time Monitored UV Water Disinfection System
Free Shipping
Powerful, yet compact UV disinfection system designed for the larger home or light commercial application, for flow rates up 18 gpm (70 lpm). The New VH410M water system has been designed and tested to ensure quality drinking water is at everyone’s finger tips. This M series model has a UV sensor to monitor the actual uv dosage in real time, and also incluses a controller port for an optional automatic solenoid valve.
Benefits:
- Space Efficient: High UV output lamp technology allows for a smaller footprint, while providing the same UV performance as a longer chamber.
- Stay Safe: State of the art UV sensor technology to give you real time performance feedback, for added peace of mind
- Optional accessories: Solenoid valve which will stop the flow of water through the chamber should the UV performance fall below a safe level
- Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails.
- Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
- High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours).
- Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.
Optional Flow Control Valve available at Pull Down Menu
SSX18.00 - 18 GPM @30mJ/cm2
SSX13.50 - 13.5 GPM @40mJ/cm2
A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.
A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55, and most health authorities

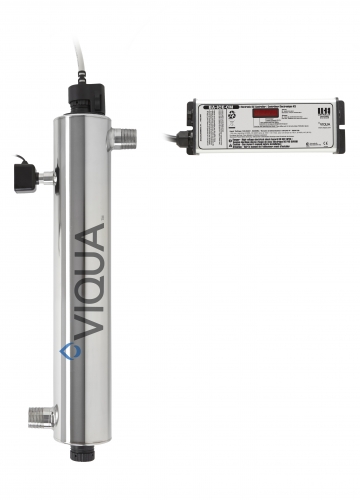

What's in the box?
- Stainless Steel Chamber
- UV Sensor
- UV Lamp
- Quartz Sleeve - preinstalled
- CM Ballast with lamp plug, with UV Sensor port and optional solenoid valve port
- Power Cord
- Mounting Clips for Chamber
- Mounting Screws
- Manual & Warranty Card
Manufactured by Sterilight/Viqua
More information on this product line click here
Click Here to download manufactures manual in English
Click Here to download manufactures manual in French
Note: The VH410M replaces the Sterilight SSM-37, SSM-39, SCM-200, SCM-320, SP320-HO and SP410-HO systems
