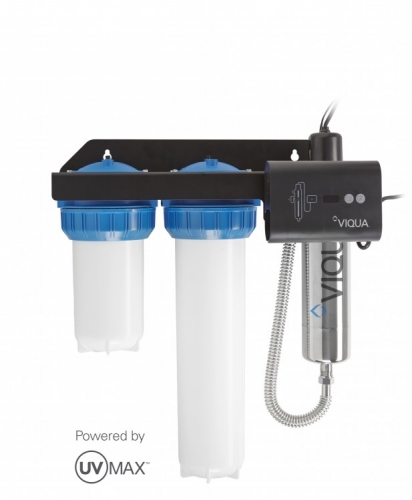

Trojan UVMax 9 to 12 gpm dual pre-filter rack system by Viqua for Whole Home Integrated UV Water Treatment

Free Shipping on now*

The Integrated Home System is a reliable, economical, and chemical-free way to safeguard drinking water in any residential application, for flow rates up to 12 gpm (45 lpm).

Benefits:

• Pre-Filter Solution: Includes (1) 10″ (1) 20″ filter housings with high-flow 5-micron sediment and taste/odour cartridges. Click here to find out more about our sediment and carbon cartridges
• Space Efficient: High UV output lamp technology allows for a smaller footprint, while maintaining the same UV dose as a longer chamber
• Reliable: High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
• The constant current feature ensures stable UV lamp output, regardless of power fluctuations
• Convenient: Mounted on a heavy-duty, painted steel bracket for a simple installation
• Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Indicator lights show the status of system components. Warning lights appear when system maintenance is required.
• Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications

Note: The IHS12-D4 replaces the Sterilight SC320-DWS12 and SCM320-DWS12 systems.

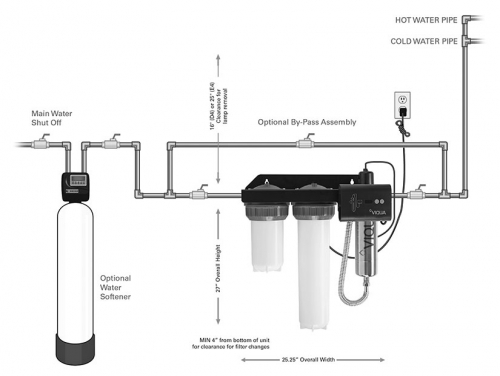

Optional Flow Control Valve available at Pull Down Menu

SSC12.00 - 12 GPM @30mJ/cm²

SSC9.00 - 9 GPM @40mJ/cm²

A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.

A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55

Specifications:

• Dimensions : 25 1/5″ x 12″ x 28″ (64 cm x 30 cm x 70 cm)
• Weight: 35 lbs (15.9 kg)
• Connection Size: 3/4″ FNPT/MNPT
• Power Consumption: 50W
• Part Number: IHS12-D4

Click here to download Manufacturer spec sheet
