Viqua's New Trojan UVMax Pro-10 Ultraviolet disinfection system

Validated with NSF 55 Class A, the PRO 10 offers outstanding UV disinfection performance for commercial applications. Rated for flow rates up to 10 gpm (38 lpm) at 40 mJ/cm².

LightWise Lamp Dimming Technology: Dims the lamp under no flow conditions.

Benefits include:

• Ease of Maintenance: Up to 60% less maintenance
• Reduced internal chamber temperature resulting in decreased sleeve fouling
• Efficient: Estimated 30% energy savings

Click here to learn more about the benefits of LightWise!

Benefits:

• Ease of Maintenance: Use the diagnostic system display to troubleshoot, should a problem arise
• High-performance amalgam UV lamp, reduces maintenance requirements by lasting up to 2 years replacement
• Reliable: New, market leading flow-meter / UV sensor combination provides real-time UV dose
• Powerful/Space Saving: Revolutionary Amalgam lamp provides 4x the output of standard output lamps, giving you compact single-lamp systems that are half the size of their predecessors
• Convenient: Features countdown timer with digital display and audible lamp change reminder for ease of maintenance
• Cool-Touch fan technology helps reduce the temperature within the chamber to prevent overheating
• Optional Accessories: COMMcenter – Displays UV dose, alarm history, lamp hours and other performance parameters.
• Includes dry contact connection for external functionality. Click here to learn more.
• Solenoid Valve – which will stop the flow of water through the chamber should the UV performance fall below a safe level
• Application: Perfect for a wide range of large homes or light commercial applications including, small businesses, hospitals, dentist offices, etc.

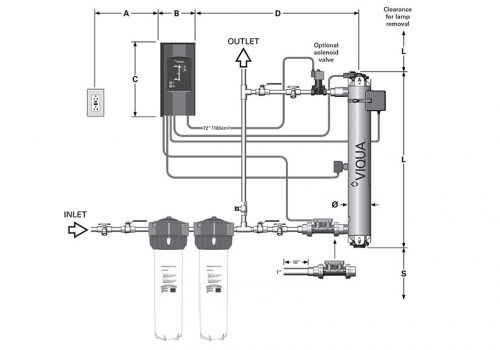

• Vertical installation is mandatory!


Click Here to download manufacture spec sheet
