Product Details
|

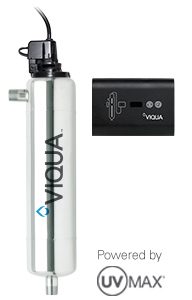

Viqua UV System Model D4 12 GPM 120v UV Sterilizer
SKU: 650694-R
|
Overview
The D4 is easy to maintain and built to deliver outstanding UV performance for the average size home or light commercial application, for flow rates up to 12 gpm (45 lpm).
Benefits:
- Space Efficient: High UV output lamp technology allows for a smaller footprint, while providing the same UV performance as a longer chamber
- Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Indicator lights show the status of system components. Warning lights appear when system maintenance is required.
- Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations
- Durable: Built with a 304 Stainless Steel to prolong life and eliminate degradation
- High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
- Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications
Note: The D4 replaces the UV Max C4, C4-V and SV12Q-PA systems
Optional Flow Control Valve available at Pull Down Menu
SSC12.00 - 12 GPM @30mJ/cm2
SSC9.00 - 9 GPM @40mJ/cm2
A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.
A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55
Specifications:
- Part # 650694-R
- Weight 4.5 kg/ 10lbs
- Manufacturer:
Viqua
Made in Canada
Click Here to download manufacture spec sheet
