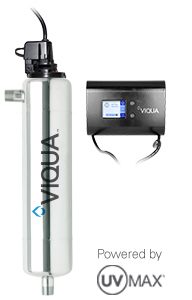

VIQUA D4 Premium Edition with LCD Screen

The D4 Premium is VIQUA’s latest innovation, combining the reliable D4 system with the new LCD Interactive Controller, for flow rates up to 12 gpm (45 lpm).

Benefits

• Space Efficient: High UV output lamp technology allows for a smaller eco-footprint, while providing the same UV performance as a longer chamber
• Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations
• High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)

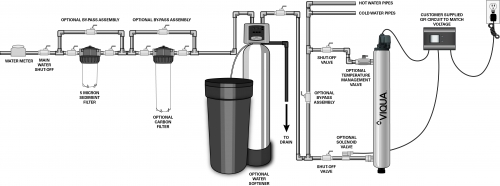

• Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications
• Optional accessories: Solenoid valve which will stop the flow of water through the chamber should the UV performance fall below a safe level

New interactive LCD display

Simultaneously displays UV Intensity Status, lamp life remaining, support contact information
Dealer-programmable support screen: load company logo and complete contact information
Quick-reference instructions on board for system troubleshooting
Pre-programmed replacement part menu

Optional Flow Control Valve available at Pull Down Menu

SSC12.00 - 12 GPM @30mJ/cm²

SSC9.00 - 9 GPM @40mJ/cm²

A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.

A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55

Specifications:

• 12gpm @ 30mJ/cm² (45 lpm) or 9gpm @ 40mJ/cm² (34 lpm)
• 50 watts, 120V, 60Hz
• Part # 660089-R
• Weight 4.5 kg- 10lbs
• Manufacturer: Viqua

Made in North America
