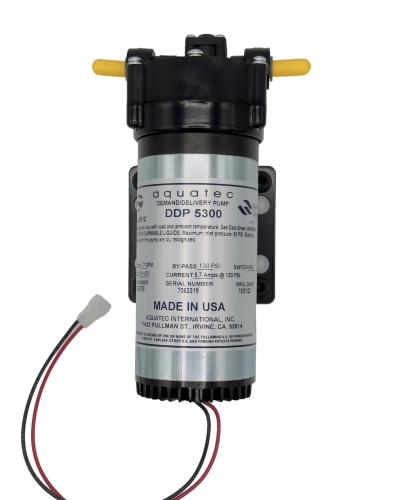

Aquatec 5300 Series Light Commercial Pump, 500-1000 GPD, 3/8", 24VDC

Key Features:

• All component materials meet stringent global approval standards
• (including NSF, FDA, and EC 1935/2004)
• Quiet, maintenance-free operation
• The new design improves priming and diaphragm protection
• Enhanced sealing for leak resistance
• Integral dampener to reduce pulsation/water hammer

Technical Specifications:

Pump design: 3-chamber diaphragm pump, self-priming, dry run tolerant

Typical applications: Light commercial feedwater boost for 500-1000 GPD reverse

osmosis and other filtration technologies as well as carbonation

Materials:

Housing: Nylon

Valves: EPDM

Diaphragm: Santoprene

Fasteners: Stainless steel, zinc-plated carbon steel

Liquid temperature: 170°F (77°C) maximum

Ports: 3/8" John Guest "Push-fit" (other options available)

Switch: None

Bypass: Pressure relief valve factory set to 130 PSI

Motor:

Type: Permanent magnet, totally enclosed, non-ventilated

Voltage: 24 VDC (other options available)

Leads: 14 AWG w/2-pin Molex connector. Compatible with Aquatec power

supply (part number 20-PWS-002, 6.7a, 100-240 VAC in, 24 VDC out)

Temp limits: For user safety, optimal performance, and maximum motor life,

this motor is equipped with a thermal protector that

limits motor shell temperature to 145°F (63°C)

Duty cycle: See heat rise graph

Mounting plate: Powder-coated steel mounting plate (other options available)

Click here for Data Sheet

Key Features:

·   All component materials meet stringent global approval standards

·   (including NSF, FDA, and EC 1935/2004)

·   Quiet, maintenance-free operation

·   New design improves priming and diaphragm protection

·   Enhanced sealing for leak resistance

·   Integral dampener to reduce pulsation/water hammer

Technical Specifications:

Pump design: 3 chamber diaphragm pump, self-priming, dry run tolerant

Typical applications: Light commercial feedwater boost for 500-1000 GPD reverse

osmosis and other filtration technologies as well as carbonation

Materials:

Housing: Nylon

Valves: EPDM

Diaphragm: Santoprene

Fasteners: Stainless steel, zinc plated carbon steel

Liquid temperature: 170°F (77°C) maximum

Ports: 3/8" John Guest "Push-fit" (other options available)

Switch: None

Bypass: Pressure relief valve factory set to 130 PSI

Motor:

Type: Permanent magnet, totally enclosed, non-ventilated

Voltage: 24 VDC (other options available)

Leads: 14 AWG w/ 2 pin Molex connector. Compatible with Aquatec power

supply (part number 20-PWS-002, 6.7a, 100-240 VAC in, 24 VDC out)

Temp limits: For user safety, optimal performance, and maximum motor life,

this motor is equipped with a thermal protector that

limits motor shell temperature to 145°F (63°C)

Duty cycle: See heat rise graph

Mounting plate: Powder coated steel mounting plate (other options available)
