Clack WS1 & WS1.25 DLFC Drain Line Flow Control for 3/4" Elbow Assembly

Clack WS1 & WS1.25 DLFC for the 3/4" Drain Ebow Assembly

For Softener & Filter Valve Applications, both Upflow & Down Flow Models

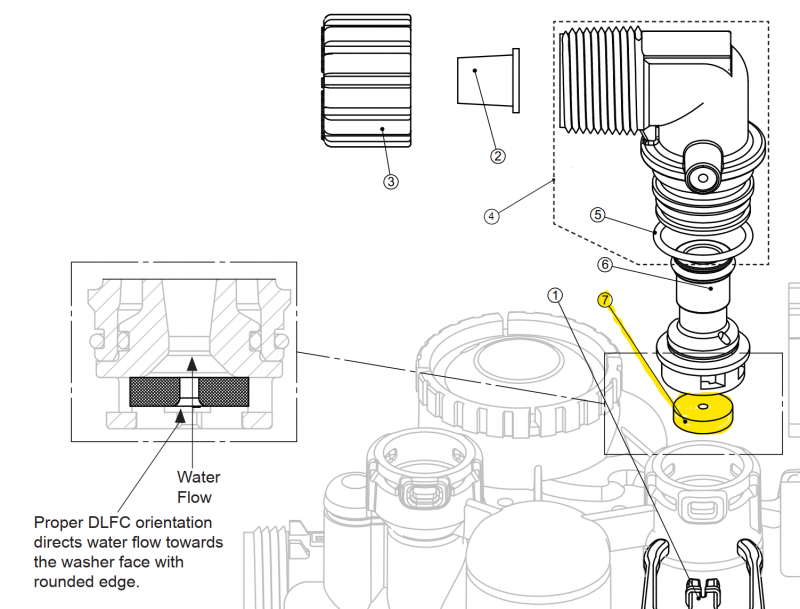

Shown as part number 7 in the diagram

One DLFC must be used if the ¾ elbow fitting is used.

When inserting the DLFC into the retainer make sure the numbers are facing out so you can read them.

Original Clack Part # V3159-XXX, XXX is replaced by the size of flow for your DLFC

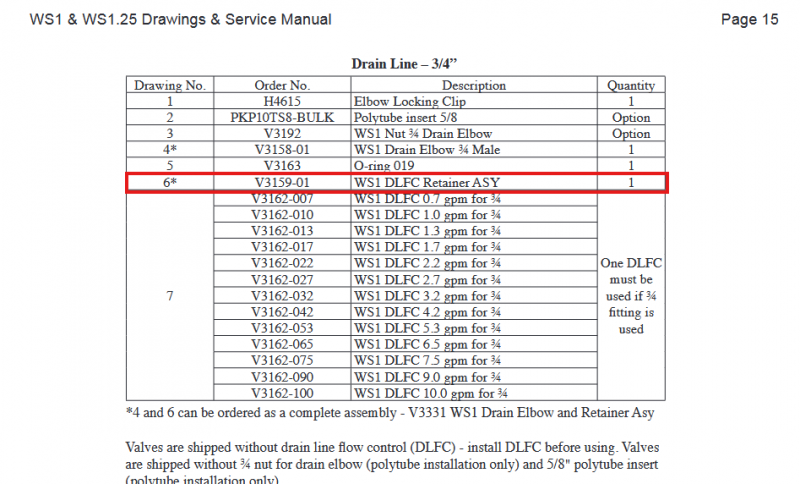

Part Numbers and matching flow rates

• V3162-007 WS1 DLFC 0.7 gpm for ¾
• V3162-010 WS1 DLFC 1.0 gpm for ¾
• V3162-013 WS1 DLFC 1.3 gpm for ¾
• V3162-017 WS1 DLFC 1.7 gpm for ¾
• V3162-022 WS1 DLFC 2.2 gpm for ¾
• V3162-027 WS1 DLFC 2.7 gpm for ¾
• V3162-032 WS1 DLFC 3.2 gpm for ¾
• V3162-042 WS1 DLFC 4.2 gpm for ¾
• V3162-053 WS1 DLFC 5.3 gpm for ¾
• V3162-065 WS1 DLFC 6.5 gpm for ¾
• V3162-075 WS1 DLFC 7.5 gpm for ¾
• V3162-090 WS1 DLFC 9.0 gpm for ¾
• V3162-100 WS1 DLFC 10.0 gpm for ¾

Manufactured by the Clack Corporation
