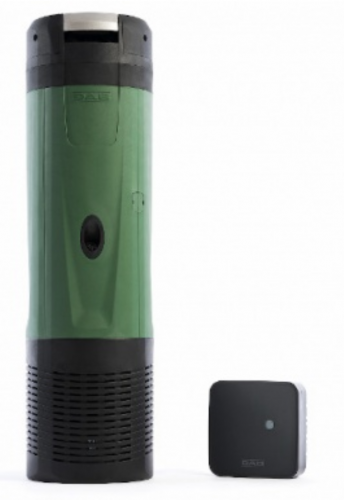

DAB ESYBox Diver 1.3HP Submersible/Convertible Pump with DConnect Box in 115volt

In its pursuit of technological innovation and with an eye for the needs of the market, DAB has developed Esybox Diver, a product that combines the reliability and performance of the Dtron range with the revolutionary concept of functional design of the Esybox line. This "all in one" product is safe and efficient, but also highly flexible and versatile and capable of meeting all manner of expectations.

Esybox Diver is a 7 inch multi-impeller electronic pump with variable frequency drive designed for clean water use in wells, tanks or cisterns. The pump can be used submerged, partially submerged or on the surface (with the DOC68 accessory, supplied separately). The pump is suitable for pressurization, rainwater re-use and gardening and irrigation activities in residential building service. The pump integrates the variable frequency drive for operation according to the system requirements, a non-return valve and a handle in stainless steel for transport. The suction height is adjustable from the bottom up to 8 cm. It is possible to connect a float and a level sensor without compromising the water tightness of the pump thanks to the NFC (Near Field Communication) pocket. Equipped with expansion tank, the use of an external expansion tank is not needed. Wi-Fi enabled DConnect Box 2 included, by downloading the free DConnect app for Android or iOS you can control the pump from your smartphone.

Useful Links

The Brochure

The Full Manual

TECHNICAL DATA

Click Here for the Pump PDF

Click Here for the DConnect PDF

Smart Assessories: *these can be found in the related products tab

• NFC Float Kit
• NFC Water Level Measurement Sensor
• Surface version (the DOC68 accessory is required)
• **the X-Kit comes with a different version of this pump with the suction float kit factory installed, see our other listing.

Certification:

• CSA, CSAus, NSF 61 and 372 (for drinking water)

CONSTRUCTION FEATURES OF THE PUMP

Technopolymer pump body to resist corrosion and oxidation. Integrated check valve. Integrated debris filter. Overpressure valve to resist to the formation of ice in the piping and to protect from water hammer. On the pump body there is a air-vent valve that improves priming during the first installation or in the event of emptying the tank/well. Technopolymer handle to move the pump. Integrated 0,04 liter expansion vessel sized to prevent the pump from cycling in the event of small leakages and to compensate in case of water hammer. No maintenance or recharging is required for the integrated vessel. The coupling between the three impellers in technopolymer, the floating ring and the smoothing disc both in stainless steel allow a limited wear of the hydraulics. Suction height can be adjusted using the appropriate accessory (included): 1.4" - 1.6" - 2.4' or 3.2" (3.5 - 4 - 6 or 8 cm).

CONSTRUCTION FEATURES OF THE MOTOR

Asynchronous submersible water cooling motor. The hydraulic side of the motor shaft is in AISI 303 stainless steel. Double mechanical seal in oil chamber ensure the pump watertight. Capacitor and integrated anti-overheating motor for thermal protection. Quick coupling/release cable to facilitate installation inside tanks. Anti tear-off power cable connection.

FEATURES OF THE ELECTRONIC

The electronic operation allows the pump to start and stop autonomously by the system requirements and protects against the dry run. NFC (Near Field Communication) pocket for the use of a floater sensor (supplied separately) which can be connected without opening the pump and so maintaining a watertight seal. The ANTI-FLOOD protection intervenes in the event of a malfunction of the shutter. The ANTI-BURPING protection protects the pump from false starts in the event of gurgling water.

Applications

Pumping water from Rain Water storage tanks

Pumping water from underground cisterns

Pumping water from water storage tanks

Pumping water from RO Water storage tanks

Domestic Water Pressurization & Service

Water pressurization for irrigation systems
