Product Details
|

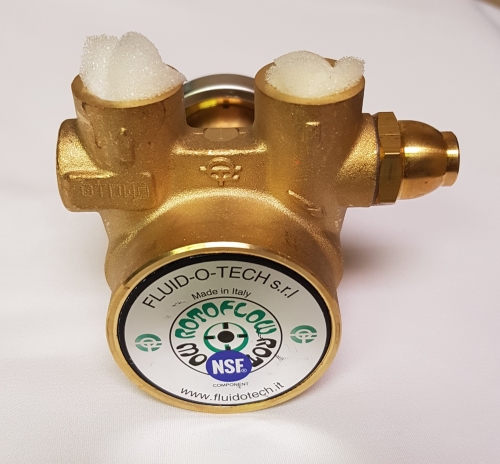

Fluid-O-Tech Brass Rotary Vane Commercial RO Pump, Clamp On Style Model # PA301
SKU: PA301
|
Overview
Fluid-O-Tech, ROTOFLOW, No-Lead Brass Rotary Vane Pump, Clamp On Style

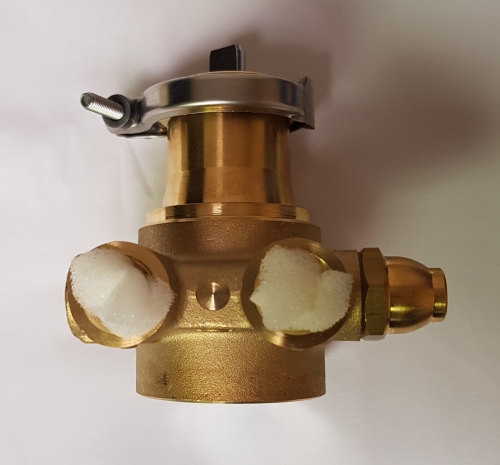

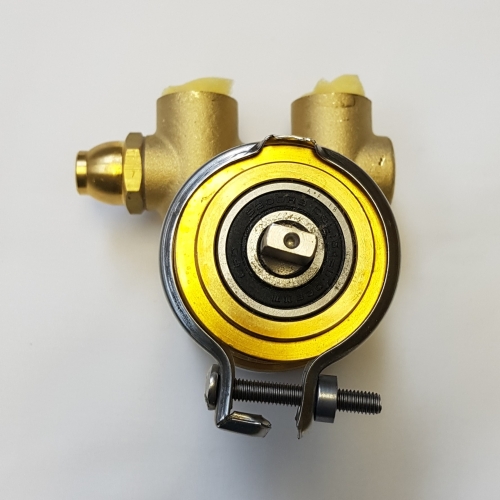

The rotary vane pumps, manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow®, are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.Technical features and manufacturing characteristicsThe rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8” GAS or NPT threaded. The pumps are designed to be directly mounted to the motor with a stainless steel clamp. For different mounting arrangements see our technical info “optional mountings”.Maximum operative temperature: 70 °C (158 F)
Features
- Self priming
- Quiet operation
- Pulsation free flow
- Internal relief valve available
- Long service life
- NFS and WRAS listed
- Comes with SS Clamp
Specs
No-Lead Brass Construction
Stainless Steel Shaft
Part # PA301
Roto-Flow Pumps are Designed and made in Italy by Fluid-O-Tech
Click here for the Data/Spec Sheet
Click here for the Manual
Used on Waterite's RSX350 Reverse Osmosis Systems
Part # APR3BZ & PA-301
The rotary vane pumps, manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow®, are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.Technical features and manufacturing characteristicsThe rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8” GAS or NPT threaded. The pumps are designed to be directly mounted to the motor with a stainless steel clamp. For different mounting arrangements see our technical info “optional mountings”.Maximum operative temperature: 70 °C (158 F)
These are popular commercial reverse osmosis pumps.
