Product Details
|

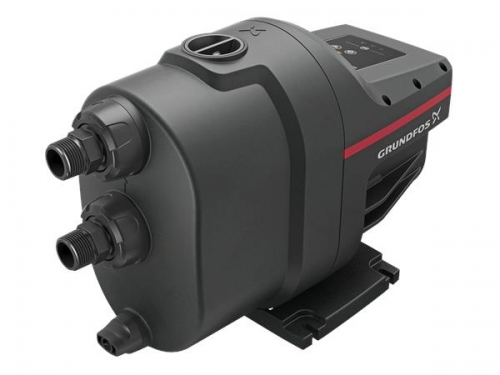

Grundfos Scala1 Booster Pump, 230v
SKU: 99631736
|
Overview
SCALA1 3-45 230volt
The Grundfos SCALA1 is a self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure.
As it is self-priming, the SCALA1 can pump water from a level below the pump. Provided it is filled with water, the pump can lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.
SCALA1 can communicate with Grundfos GO app via built in Bluetooth, which enables detailed pump monitoring and high customization options, making this pump a good fit for every application.
SCALA1 incorporates advanced protection features such as:
|
The pump has a built-in motor protection that will stop the pump if exposed to excessive temperature due to high ambient temperature, in case of seizure or overload, thus preventing a motor burnout.
With Grundfos GO you can easily setup SCALA1 as a Twin booster system, operating as duty/stand by as well as duty/assist. It is also possible to add external input control and schedule a pump operation via calendar function.
SCALA1 require no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust.
Ideal for:
- Plumbing: Pressure Boosting
- Residential groundwater intake
- Residential water pressure boosting
- Residential rainwater harvesting
Note this pump is also aviable in 115volt ac , please seee our other listing.
Technical
Rated flow | 14 US gpm |
Rated head | 82.02 ft |
Maximum head | 147.6 ft |
Primary shaft seal | BVBP |
Approvals | CCSAUS,CSA_LLC,PROP65 |
Approvals for drinking water | CSA DW |
Curve tolerance | ISO9906:2012 3B |
Model | A |
Start pressure | 31.91 psi |
Materials
Composite
Pump housing | Composite |
Impeller |
Product name | SCALA1 3-45 |
Product No. | 99631736 |
EAN | 5713832221783 |
Price |
Installation
Range of ambient temperature | 32 .. 131 °F |
Maximum operating pressure | 116 psi |
Maximum permissible inlet pressure | 43.5 psi |
Type of inlet connection | NPT(M) |
Type of outlet connection | NPT(M) |
Size of suction port | 1 inch |
Size of outlet port | 1 inch |
Pressure rating for connection | PN 8 |
Liquid
Pumped liquid | Water |
Liquid temperature range | 32 .. 113 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Electrical data
Length of power cable | 4.92 ft |
P1 max. | 870 W |
Rated power - P2 | 0.764 HP |
Main frequency | 60 Hz |
Rated voltage | 1 x 230 V |
Maximum current consumption | 3.72 A |
Enclosure class (IEC 34-5) | X4D |
Insulation class (IEC 85) | F |
Power plug | NEMA 6-15 |
US plug 230V |
Others
Net weight | 26.5 lb |
Gross weight | 30.9 lb |
Shipping volume | 1.62 ft³ |
Storage temperature range | -40 .. 158 °F |
Country of origin | IT |
Custom tariff no. | 8413.70.00.30 |
