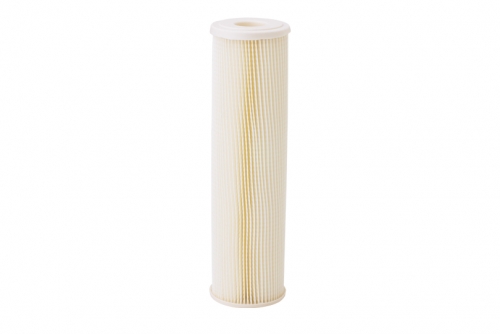

Pentek ECP Series 20 Micron 10"BB Pleated Cellulose Polyester Filter Cartridge

Pentair (Pentek) ECP Series Cartridges are manufactured from a special formulation of resinClose Viewer-impregnated cellulose and polyester fibers. This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity while maintaining extremely low pressure drop.

The media is pleated around a polypropylene core for added strength. The pleated endcaps of the standard cartridges are immersed in a thermo-setting vinyl plastisol. The Big Blue cartridges have a molded endcap with gaskets. The pleated ends are sealed to the endcap with a thermoplastic adhesive. The overlap seam is sonically welded to reduce internal bypass, improving filtration efficiency.

ECP Series Cartridge endcaps feature a color-coding system for easy identification of micron ratings: tan (1 micron), white (5 micron), blue (20 micron), and yellow (50 micron).

ECP Series Cartridges contain more media surface area than most competitive cartridges.

Features

• Replaces Pentek CP and HFCP Series Cartridge
• Special formulated of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridge
• Minimal unloading and media migration
• Filter Media: Cellulose Polyester
• Core: Polypropylene
• Temperature Rating: 40-125° F (4.4-51.7° C)
• Micron Size: 20 Micron
• Color: Blue
• Flow Rate: <1 psi @ 20gpm [<0.1 bar @ 38 Lpm]
• Size: 10" X 4.5" [114 mm X 248 mm]
• Part Number - 255491-43 or ECP20-BB

Click Here to download manufacture spec sheet

Other available ECP cartridge sizes contain the following amount of media:

• Standard 10" cartridge: 6 ft2
• Standard 20" cartridge: 12 ft2
• BB 10" cartridge: 18 ft2
• BB 20" cartridge: 36 ft2
