Limited Time Sale!
Price: $12.99
SKU: CBC5CT03NX
Happy Customers Since 1989
Product Details
|

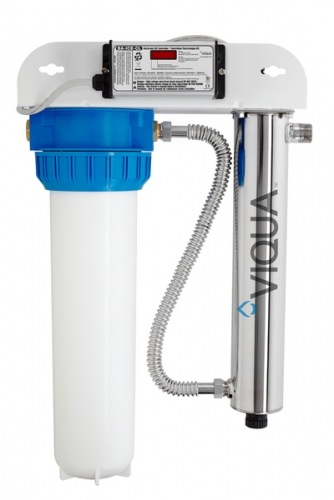

Viqua 14gpm to 18gpm Whole Home Integrated Pre-Filtration UV Mini Rack System Model # VH410-F20
SKU: VH410-F20
|
Overview
Viqua/Sterilight's 14gpm to 18gpm Whole Home Integrated Pre-Filtration UV Mini Rack System.
This item ships freight free
Powerful, yet compact UV disinfection system with pre-filtration designed for the average size home or cottage, for flow rates up to 18gpm.
Benefits:
- Pre-Filter Solution: Adds integral 5-micron pre-filtration module to the VH410 UV system.
- Convenient: Mounted on a reversible, heavy-duty, painted steel bracket for installation flexibility and convenience
- Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
- Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. A controller will also go into alarm if the lamp fails.
- Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
- High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours).
- Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.
Note: The VH410-F20 replaces the Sterilight S12QPA system.
Optional Flow Control Valve available at Pull Down Menu
SSX13.5 GPM @40mJ/cm2
SSX18 GPM @30mJ/cm2
A 30 mJ/cm² is the dosage typically produced by a system when designed using the 1966 US Department of Health Policy Statement.
A 40 mJ/cm2 dosage is required by NSF/ANSI Standard 55
What's in the box?
- Stainless Steel Chamber
- UV Lamp
- Quartz Sleeve - preinstalled
- ICE Ballast with lamp plug and Power Cord
- Filter and filter housing
- SS Flexible Hose
- Bracket
- Manual & Warranty Card
Manufactured by Sterilight/Viqua
Click here to download manufacture spec sheet
Click Here to download owner's manual
