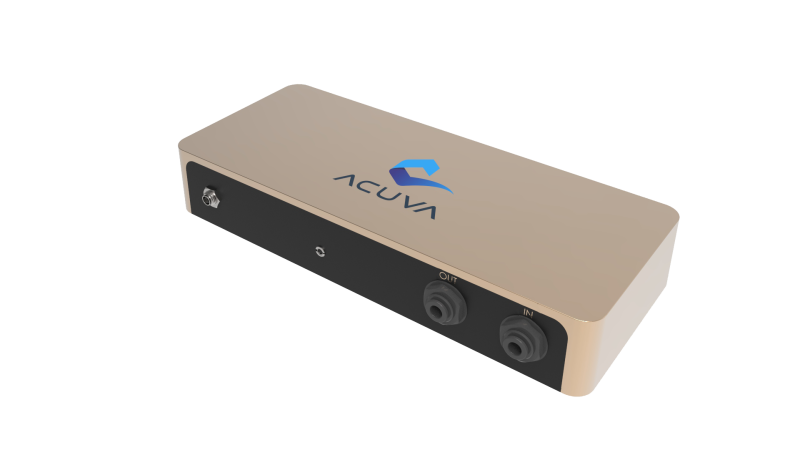

WaterSprint Retrofit Kit Acuva ArrowMAX™ Explore 2.0 UV Replacment Main Box Only

List Price: $600.00
$58500
$58500
SKU AME-2-RETROFIT
Brand WaterSprint
Get Rewards 5571.43 Points !
1 Related Product
Finance Options

PURCHASE INQUIRIES
On Sale Savings ! Your Savings !
$15.00

Retrofit Kit for the Acuva - Explore 2 0 - ArrowMAX 2.0 UV-LED Water Purification Systems by WaterSprint

Powered by Acuva's IntenseBeam™ Technology. Enjoy instant, on-demand, non-chemical drinking water purification with low power requirements and without the drawbacks of legacy systems. This mercury-free system safely disinfects water without adding any chemicals to your drinking water.

The Acuva™ ArrowMAX 2.0, Explore 2 can dispense up to 120,000 liters of clean water in its lifetime, with 1,000 hours of LED life.

Compatible with any water appliance or faucet.

*Note this listing os for the main UV Box and not a complete system with faucet and filter etc... please see our other listings for thos products.

Features & Benefits

  • Instant on with integrated flow sensor
  • 12V DC input; ~9W active, ~0.1W standby

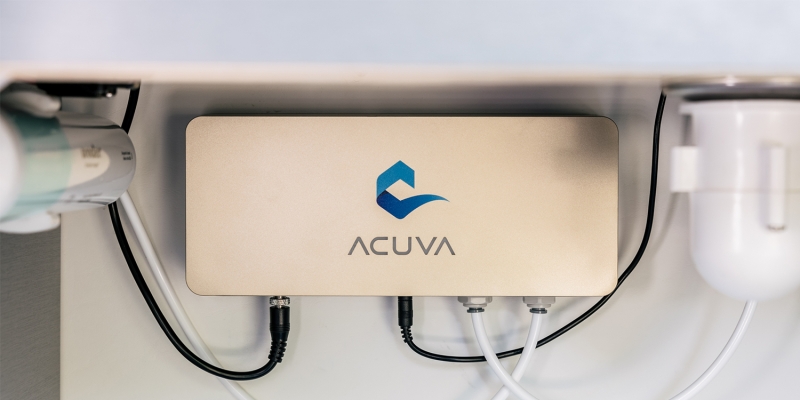

  • Compact, under-sink installation
  • Operates on DC power; AC power
  • Solar friendly, ideal for off-grid or mobile setups
  • Mercury-free, chemical-free purification
  • Disinfects >99.999% of E. coli at 6.0 L/min*
  • Built for efficiency and long LED lifespan

Certification

ArrowMAX 2.0 is certified by IAPMO R&T against NSF/ANSI 55 Class "B" for the supplemental bacterial treatment of disinfected public drinking water or other drinking water that has been tested and deemed acceptable for human consumption by the state or local health agency having jurisdiction.

The system is only designed to reduce normally occurring non-pathogenic nuisance microorganisms. Class "B" systems are not intended for treatment of contaminated water.

It is also certified by IAPMO R&T to NSF/ANSI 372 and CSA B483.1.
* Disinfects >99.999% of E. coli at 6.0 L/min validated by SGS-CSTC Standards Technical Services (Shanghai) Co. Ltd.

EPA Est. No: 98339-CAN-1

IAPMO Certification No:
  • W-10944 (Ultraviolet Microbiological Water Treatment System)
  • W-10946 (Lead Free Water Filtration Product)
  • W-13411 (CSA B483.1)

Specifications

  • Certified Flow Rate: 2.0 L/min
  • Input Voltage: 11–16V DC
  • UV Dose Delivery: >16 mJ/cm2
  • LED Lifetime: 1,000 hrs (on-demand)
  • Inlet Fitting: 1/4" OD Push-to-Connect
  • Outlet Fitting: 1/4" OD Push-to-Connect
  • >99.999% of E. coli: at 6.0 L/min*
    •  Delivers a UV Dose of >16mJ/cm2 at device end of life
  • Power Consumption (Active): ~9.0W
  • Power Consumption (Standby): ~0.1W
  • Max Water Temp: 40°C
  • Working Pressure: 12–100 PSI

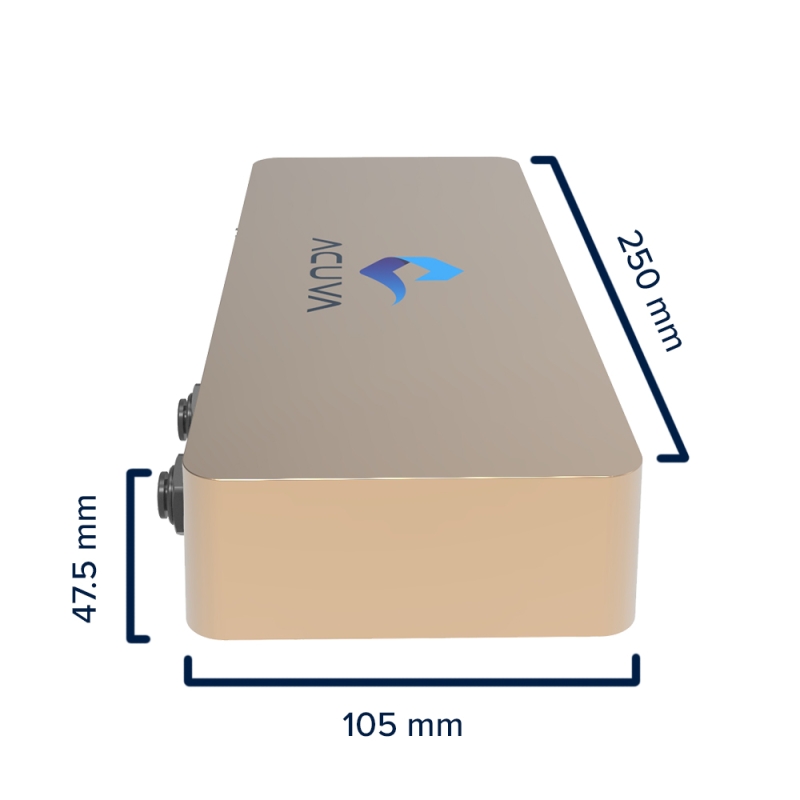

  • Dimensions: 250 x 47.5 x 105 mm
  • Boxed Dimensions: 18" x 9" x 5"
  • Boxed Weight: 7.5 lbs
  • Acuva - Explore 2 - ArrowMAX 2.0: 1 Piece in total
  • Part Number - 600-0732-02

Downloads

Get Peace of Mind With Every Drop

Extend the life of your Explore 2 - Acuva ArrowMAX™ 2.0 today and enjoy safe, great-tasting water wherever you are – at home, on the road, or at sea.

WaterSprint Product Lines
Product Category Filters Product Lines Filtered by Category WaterSprint Product Category Filters

WaterSprint® brings together Swedish Engineering & Canadian Innovation through Acuva™'s next-gen UV LED-C technology. Every system is chemical-free, sustainable, and built for dependable performance – whether protecting your home, powering RV adventures, or ensuring reliable purification when out on the open water.

As a global leader in innovative design, WaterSprint continues to raise the bar in LED-C UV purification. Signature solutions include the Core® whole-home purifier, the Solo® Nautic II for demanding marine environments, and the proven Acuva ArrowMAX™ series – integrating ground breaking Canadian technology into WaterSprint's trusted solutions.

About WaterSprint® / Acuva™ LED-C UV Water Purification Systems

WaterSprint's product range includes premium LED-C UV purification systems designed for whole-home, point-of-entry, under-sink, marine, RV, and mobile water treatment applications. Key product families include the WaterSprint Core® whole-home purifier, the Acuva ArrowMAX™ Home 10K point-of-entry system, ArrowMAX™ 1.2 and 2.0 under-sink purification systems, and the Solo® Nautic II for demanding boat and RV environments.

These systems are engineered to deliver chemical-free, mercury-free water disinfection using advanced UVC LED technology. Depending on the model, WaterSprint and Acuva solutions combine features such as patented Hygienic Pulsing™, IntenseBeam™ Technology, on-demand operation, flow-sensor activation, WiFi connectivity, and optional or integrated Smart Faucet designs to provide reliable purification with low power consumption and minimal maintenance.

Following WaterSprint's acquisition of Vancouver-based Acuva in late 2024, patented innovations such as IntenseBeam™ Technology – originally developed in 2014 through a Canadian research initiative in partnership with the University of British Columbia (UBC), have since become part of the broader WaterSprint portfolio. Brand-loyal customers who already know and trust the Acuva name, can rest assured that proven solutions like ArrowMAX™ continue under WaterSprint, carrying forward the Canadian innovation that helped grow Acuva from a respected domestic brand into a globally recognized leader in cutting-edge water disinfection solutions.

For whole-home and point-of-entry applications, WaterSprint Core® and Acuva ArrowMAX™ Home 10K are designed to disinfect all incoming water while remaining compact, energy-efficient, and easy to install. For under-sink, marine, and RV use, the ArrowMAX™ systems and Solo® Nautic II offer premium purification in demanding low-power environments where reliability, compact design, and long-lasting performance are essential.

If you are looking for a specific WaterSprint or Acuva purification system, Smart Faucet, or related component not listed on this page, please contact us by email or call our office (1-866-489-4004) for assistance. Our team can help identify the right UV LED purification solution for your home, RV, boat, or point-of-entry water system.

Browse our full selection of WaterSprint whole-home purifiers, Acuva ArrowMAX™ systems, Solo® Nautic II units, and Smart Faucets and get dependable premium water purification technology shipped FAST from our Canadian warehouse DIRECTLY to your door. A real Water Guy can help you select the right system for your application.
